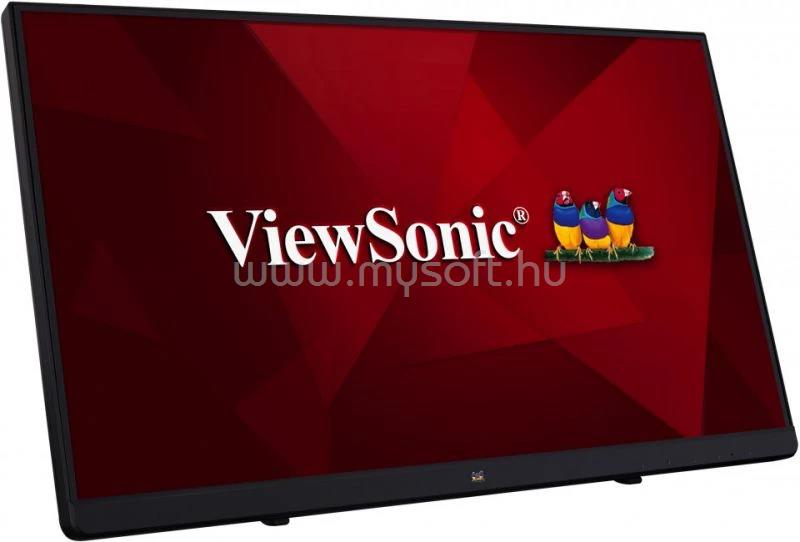

VIEWSONIC TD2230 ÉRINTŐKÉPERNYŐS MONITOR

Kijelző

• Képátló: 22"
  Felbontás: 1920x1080
  Panel: IPS
  Képarány: 16:9

Csatlakozók

• • 1x VGA
  • 0x DVI
  • 1x DisplayPort
  • 1x HDMI
  • TV-tuner

• Display

• Display Size (in.)
• 22
• Viewable Area (in.)
• 21.5
• Panel Type
• IPS Technology
• Resolution
• 1920 x 1080
• Resolution Type
• FHD (Full HD)
• Static Contrast Ratio
• 1,000:1 (typ)
• Dynamic Contrast Ratio
• 50M:1
• Light Source
• LED
• Brightness
• 200 cd/m2 (typ)
• Colors
• 16.7M
• Color Space Support
• 8 bit (6 bit + Hi-FRC)
• Aspect Ratio
• 16:9
• Response Time (Typical GTG)
• 5ms
• Response Time (GTG w/OD)
• 5ms
• Viewing Angles
• 178° horizontal, 178° vertical
• Backlight Life (Hours)
• 30000 Hrs (Min)
• Curvature
• Flat
• Refresh Rate (Hz)
• 60
• Blue Light Filter
• Yes
• Flicker-Free
• Yes
• Color Gamut
• NTSC: 77% size (Typ)
• sRGB: 108% size (Typ)
• Pixel Size
• 0.248 mm (H) x 0.248 mm (V)
• Touch Screen
• Projected Capacitive, 10-point multi-touch
• Surface Treatment
• Glossy, Hard Coating (7H)
• Cover Glass Thickness
• 0.7mm

• Compatibility

• PC Resolution (max)
• 1920x1080
• Mac Resolution (max)
• 1920x1080
• PC Operating System
• Windows 7/8/8.1/10/11 certified; macOS tested
• Mac Resolution (min)
• 1920x1080

• Connector

• VGA
• 1
• USB 3.2 Type A Down Stream
• 2
• USB 3.2 Type B Up Stream
• 1
• 3.5mm Audio In
• 1
• 3.5mm Audio Out
• 1
• HDMI 1.4
• 1
• DisplayPort
• 1
• Power in
• DC Socket (Center Positive)

• Audio

• Internal Speakers
• 3Watts x2

• Power

• Eco Mode (Conserve)
• 16 w/ ES 7.0; 19 w/o ES 7.0W
• Eco Mode (optimized)
• 18 w/ ES 7.0; 22 w/o ES 7.0W
• Consumption (typical)
• 20 w/ ES 7.0; 25 w/o ES 7.0W
• Consumption (max)
• 25 w/ ES 7.0; 28 w/o ES 7.0W
• Voltage
• AC 100-240V
• Stand-by
• 0.5W
• Power Supply
• External Power Adaptor

• Additional Hardware

• Kensington Lock Slot
• 1

• Controls

• Physical Controls
• 1, 2, Up, Down, Power
• On Screen Display
• Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall

• Operating Conditions

• Temperature
• 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing)
• 20% to 90%

• Wall Mount

• VESA Compatible
• 100 x 100 mm

• Input Signal

• Frequency Horizontal
• RGB Analog: 24 ~ 82KHz, HDMI (v1.4): 15 ~ 82KHz, DisplayPort (v1.2): 15 ~ 82KHz
• Frequency Vertical
• RGB Analog: 50 ~ 76Hz, HDMI (v1.4): 50 ~ 76Hz, DisplayPort (v1.2): 50 ~ 76Hz

• Video Input

• Digital Sync
• TMDS - HDMI (v1.4), PCI-E - DisplayPort (v1.2)
• Analog Sync
• Separate/Composite/SOG - RGB Analog

• Ergonomics

• Tilt (Forward/Back)
• 20° / 70°

• Weight (imperial)

• Net (lbs)
• 7.9
• Net Without Stand (lbs)
• 7.9
• Gross (lbs)
• 10.4

• Weight (metric)

• Net (kg)
• 3.6
• Net Without Stand (kg)
• 3.6
• Gross (kg)
• 4.7

• Dimensions (imperial) (wxhxd)

• Packaging (in.)
• 21.7 x 14.6 x 4.5
• Physical (in.)
• 19.3 x 11.8 x 1.9
• Physical Without Stand (in.)
• 19.3 x 11.8 x 1.9

• Dimensions (metric) (wxhxd)

• Packaging (mm)
• 550 x 371 x 114
• Physical (mm)
• 490 x 299 x 47
• Physical Without Stand (mm)
• 490 x 299 x 47

• General

• PACKAGE CONTENTS
• TD2230 x1
• 3-pin Mickey Mouse Plug (IEC C5) x1
• HDMI Cable (v1.4; Male-Male) x1
• USB A/B Cable (v3.2; Male-Male) x1
• Audio Cable (Male-Male) x1
• AC/DC Adapter x1
• Quick Start Guide x1

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
