TP-LINK 8 PORTOS GIGABITES SMART POE SWITCH 2 DB SFP CSATLAKOZÓVAL

• TP-LINK 8 portos gigabites Smart PoE switch 2 db SFP csatlakozóval (verzió: V3.20) (TL-SG2210P_V3):
• TP-LINK 8 portos gigabites Smart PoE switch 2 db SFP csatlakozóval (verzió: 5.0):

• HARDWARE FEATURES

• Standards and Protocols
• IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab,
• IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s,
• IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
• Interface

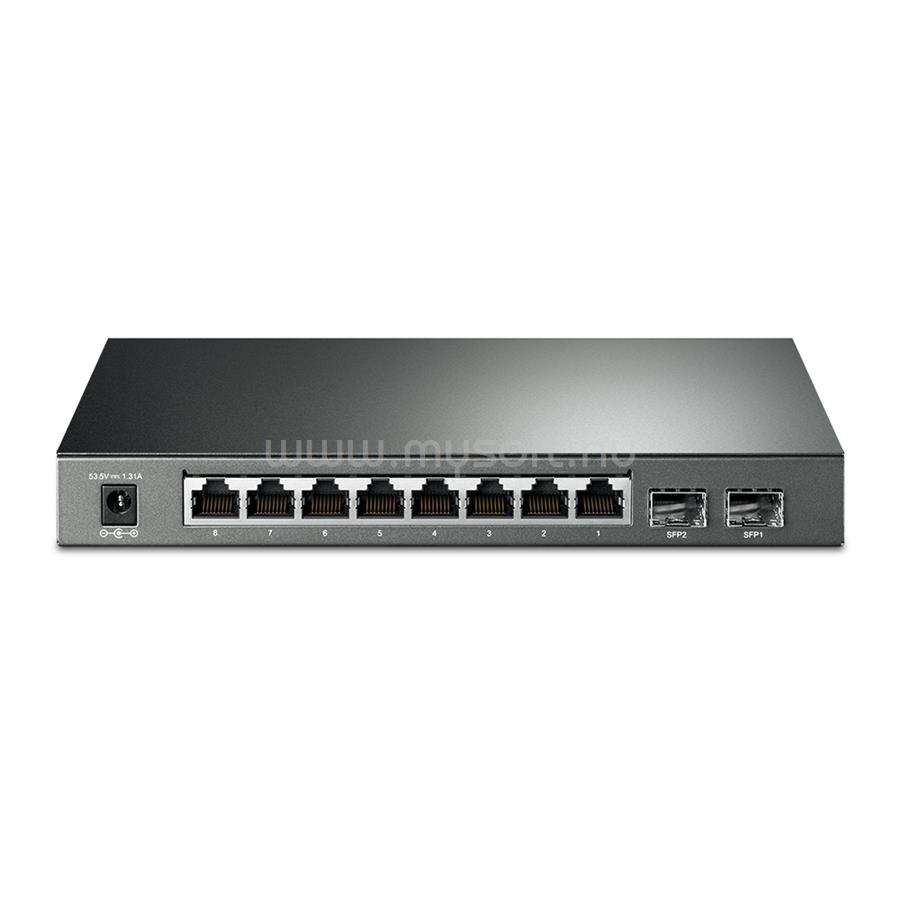

• 8 10/100/1000Mbps RJ45 Ports
• 2 1000Mbps SFP Slots
• (Auto-Negotiation/Auto MDI/MDIX)
• Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
• 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
• 1000BASE-X: MMF, SMF
• Fan Quantity
• Fanless
• Power Supply
• 100~240VAC, 50/60Hz
• External Power Adapter(Output: 54VDC/1.3A)
• Power Consumption
• 10.3W (without POE device connected)
• 76.5W (with 61W POE devices connected)
• PoE Ports (RJ45)
• Standard: 802.3af/at compliant
• PoE Ports: 8 Ports
• Power Supply: 61 W
• Dimensions ( W x D x H )
• 8.2 x 4.9 x 1.0 in. (209 x 126 x 26mm)
• Mounting
• Desktop / Wall-Mounting
• Max Power Consumption
• V3.2: 76.5 W (220 V/50 Hz) (with 61 W PD connected); 10.3 W (220 V/50 Hz) (no PD connected)
• V4: 74.4 W (220 V/50 Hz) (with 61 W PD connected)
• V5: 77.8 W (110 V/60 Hz) (with 61 W PD connected)
• Max Heat Dissipation
• V3.2: 261.02 BTU/hr (220 V/50 Hz) (with 61 W PD connected); 35.14 BTU/hr (220 V/50 Hz) (no PD connected)
• V4: 253.89 BTU/hr (220 V/50 Hz) (with 61 W PD connected)
• V5: 265.3 BTU/hr (110 V/60 Hz) (with 61 W PD connected)

• PERFORMANCE

• Switching Capacity
• 20 Gbps
• Bandwidth/Backplane
• 20 Gbps
• Packet Forwarding Rate
• 14.88 Mpps
• MAC Address Table
• 8K
• Packet Buffer Memory
• 4.1 Mbit
• Jumbo Frame
• 9 KB

• SOFTWARE FEATURES

• Quality of Service
• 802.1p CoS/DSCP priority
• 8 priority queues
• Priority Schedule Mode
• SP (Strict Priority)
• WRR (Weighted Round Robin)
• Queue Weight Config
• Bandwidth Control
• Port/Flow based Rating Limit
• Smoother Performance
• Storm Control
• Multiple Control Modes(kbps/ratio)
• Broadcast/Multicast/Unknown-Unicast Control
• L2 and L2+ Features
• 16 IP Interfaces
• Support IPv4/IPv6 Interface
• Static Routing
• 32 IPv4/IPv6 Static Routes
• DHCP Server
• DHCP Relay
• DHCP Interface Relay
• DHCP VLAN Relay
• DHCP L2 Relay
• Static ARP
• Proxy ARP
• Gratuitous ARP
• Link Aggregation
• Static link aggregation
• 802.3ad LACP
• Up to 8 aggregation groups and up to 8 ports per group
• Spanning Tree Protocol
• 802.1D STP
• 802.1w RSTP
• 802.1s MSTP
• STP Security: TC Protect, BPDU Filter/Protect,
• Root Protect
• Loopback Detection
• Flow Control
• 802.3x Flow Control
• Mirroring
• Port Mirroring
• CPU Mirroring
• One-to-One
• Many-to-One
• Flow-Based
• Ingress/Egress/Both
• Device Link Detect Protocol (DLDP)
• 802.1ab LLDP/ LLDP-MED
• VLAN
• VLAN Group
• Max. 4K VLAN Groups
• 802.1Q tag VLAN
• MAC VLAN
• Protocol VLAN
• GVRP
• Voice VLAN
• Access Control List
• Support up to 230 entries
• Time-Range
• Time Slice
• Week Time-Range
• Absolute Time-Range
• Holiday
• Time-based ACL
• MAC ACL
• Source MAC
• Destination MAC
• VLAN ID
• User Priority
• Ether Type
• IP ACL
• Source IP
• Destination IP
• IP Protocol
• TCP Flag
• TCP/UDP Source Port
• TCP/UDP Destination Port
• DSCP/IP TOS
• IPv6 ACL
• Combined ACL
• Rule Operation
• Permit/Deny
• Policy Action
• Mirror
• Rate Limit
• Redirect
• QoS Remark
• ACL Rules Binding
• Port Binding
• VLAN Binding
• Actions for flows
• Mirror (to supported interface)
• Redirect (to supported interface)
• Rate Limit
• QoS Remark
• Security
• AAA
• 802.1X
• Port based authentication
• MAC (Host) based authentication
• Authentication Method includes PAP/EAP-MD5
• MAB
• Guest VLAN
• Support Radius authentication and accountability
• IP/IPv6-MAC Binding
• 512 Binding Entries
• DHCP Snooping
• DHCPv6 Snooping
• ARP Inspection
• ND Detection
• IP Source Guard
• 253 Entries
• Source IP+Source MAC
• IPv6 Source Guard
• 183 Entries
• Source IPv6 Address+Source MAC
• DoS Defend
• Static/Dynamic/Permanent Port Security
• Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• kbps/ratio control mode
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC based access control
• IPv6
• IPv6 Static Routing and ACL
• IPv6 Dual IPv4/IPv6
• IPv6 Interface
• Multicast Listener Discovery (MLD) Snooping
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications
• DHCPv6 Client
• Ping6
• Tracert6
• Telnet(v6)
• IPv6 SNMP
• IPv6 SSH
• IPv6 SSL
• Http/Https
• IPv6 TFTP
• Management
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log
• Advanced Features
• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• MIBs
• MIB II (RFC1213)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIBs
• RMON MIB(RFC1757, rmon 1,2,3,9)

• MANAGEMENT

• Omada App
• Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
• OC300
• OC200
• Omada Software Controller
• Centralized Management
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
• Omada Hardware Controller OC300
• Omada Hardware Controller OC200
• Omada Software Controller
• Cloud Access
• Yes, through
• Omada Cloud-Based Controller (Not Supported by TL-SG2210P v4)
• OC300
• OC200
• Omada Software Controller
• Zero-Touch Provisioning
• Yes. Requiring the use of Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5 and above, while is not supported by TL-SG2210P v4)
• Management Features
• Web-based GUI
• Command Line Interface (CLI) through telnet
• SNMPv1/v2c/v3
• SNMP Trap/Inform
• RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• SNTP
• System Log

• OTHERS

• Package Contents
• TL-SG2210P
• Power Adapter
• Installation Guide
• Rubber Feet
• Environment
• Operating Temperature: 0°C~40°C (32°F~104°F);
• Storage Temperature: -40°C~70°C (-40°F~158°F)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing

Garancia fogyasztók részére

• 2 év kötelező jótállás + 3 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 5 év gyártó által biztosított szervizgarancia
