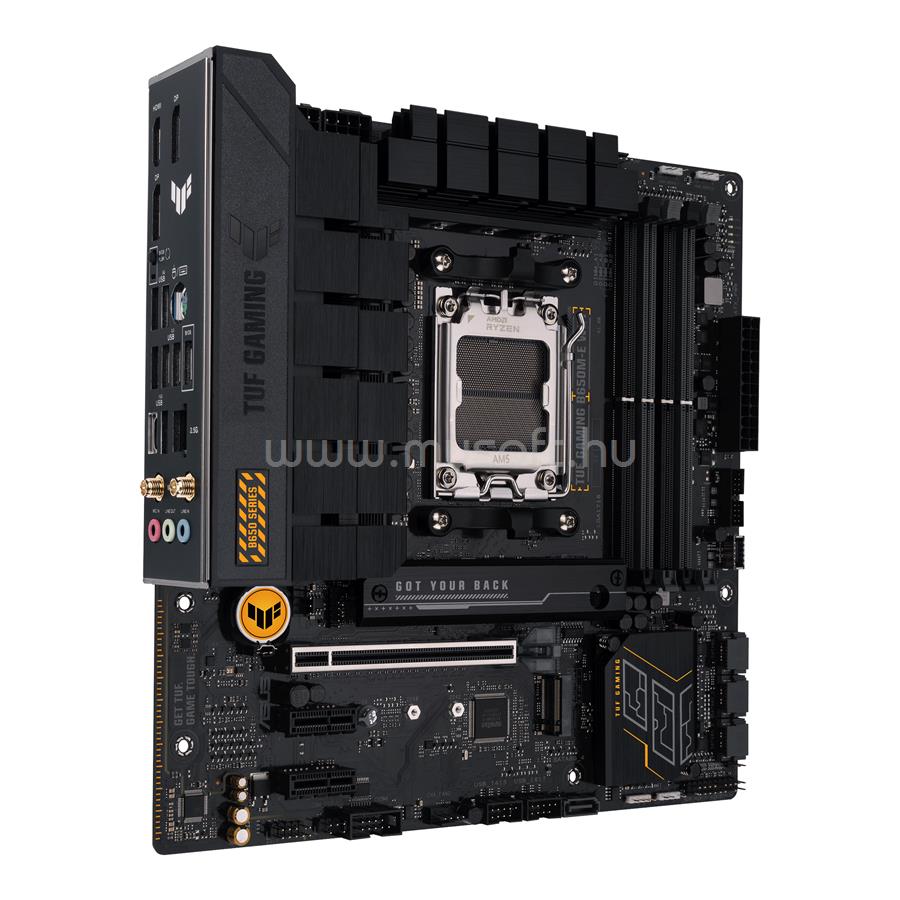

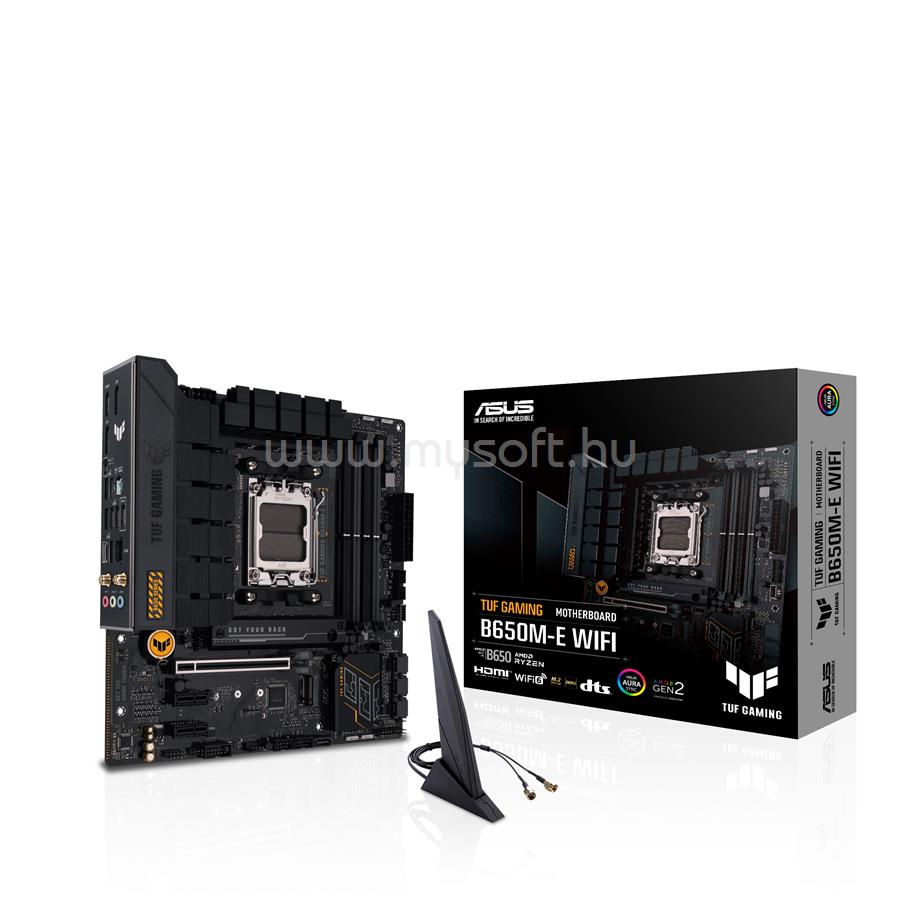

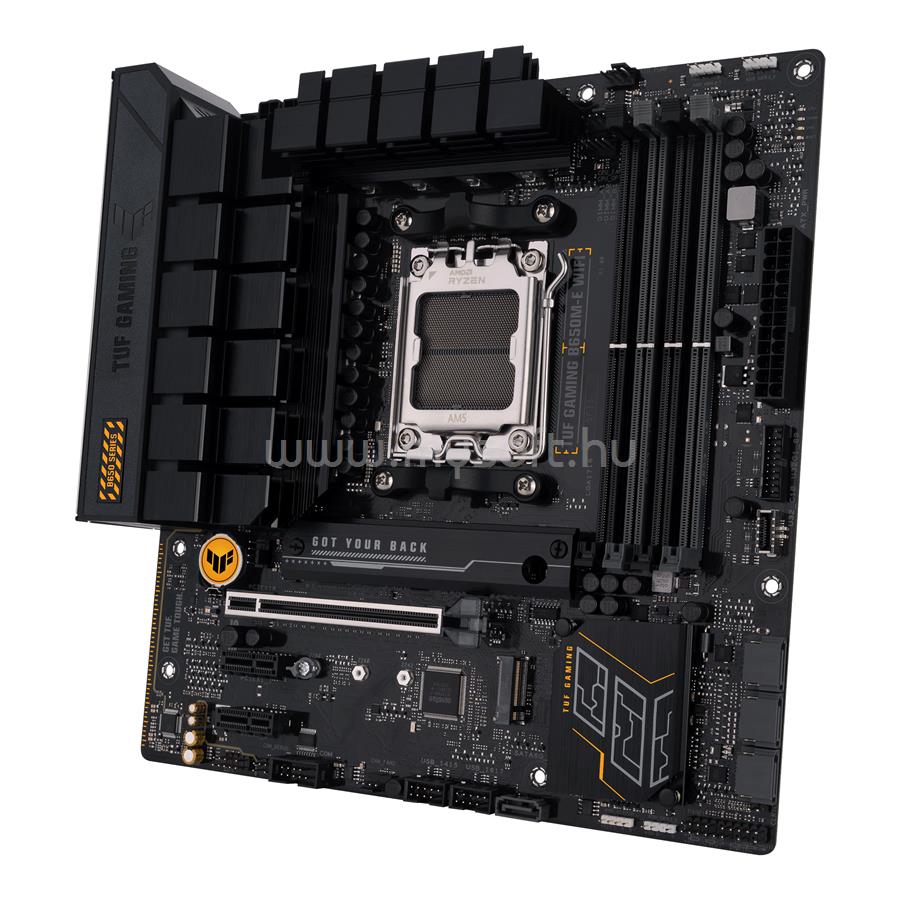

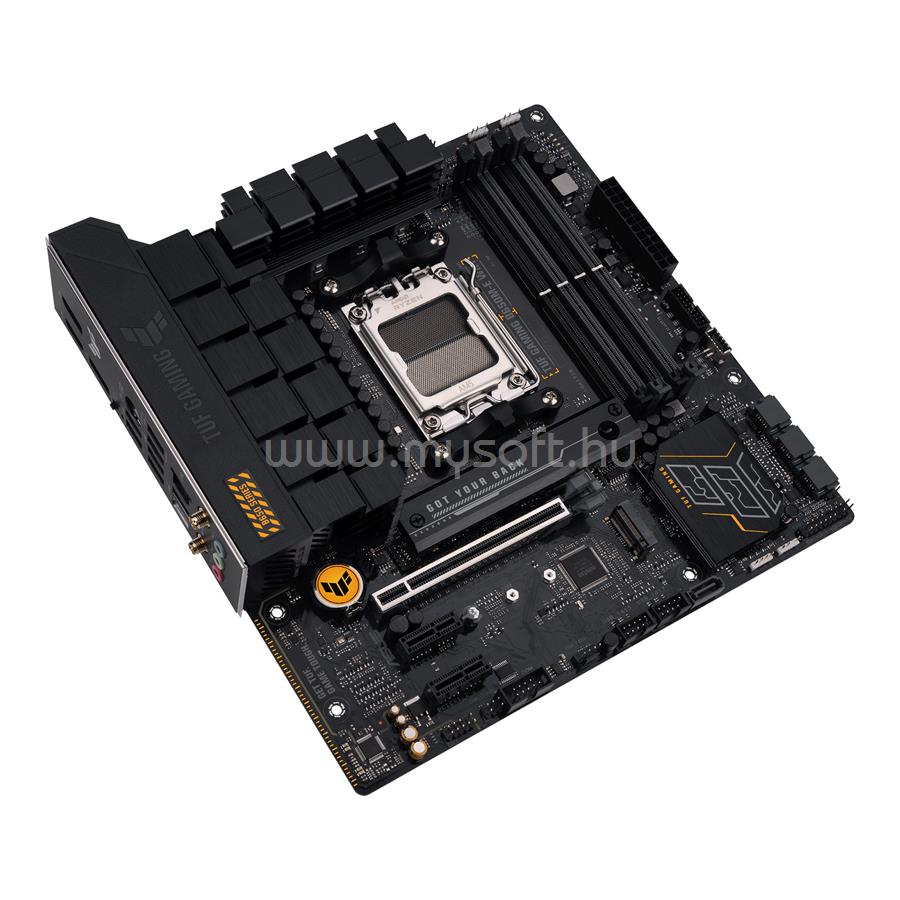

ASUS ALAPLAP TUF GAMING B650M-E WIFI (AM5, MATX)

• CPU

• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
• * Refer to https://www.asus.com/ for CPU support list.
• AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
• * Refer to https://www.asus.com/ for CPU support list.

• Chipset

• AMD B650

• Memory

• 4 x DIMM slots, Max. 192GB, DDR5 7600+(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ / 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/
• * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

• Graphics

• 2 x DisplayPort**
• 1 x HDMITM port***
• * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
• ** Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• *** Supports 4K@60Hz as specified in HDMI 2.1.

• Expansion Slots

• AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B650 Chipset
• 2 x PCIe 4.0 x1 slots
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• ** Specifications vary by CPU types.
• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slot (supports x16 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B650 Chipset
• 2 x PCIe 4.0 x1 slots
• * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
• ** Specifications vary by CPU types.
• To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
• AMD B650 Chipset
• 4 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• ** Specifications vary by CPU types.
• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
• AMD B650 Chipset
• 4 x SATA 6Gb/s ports
• * AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
• ** Specifications vary by CPU types.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

• Wireless & Bluetooth

• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth© v5.2*
• *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
• Wi-Fi 6
• 1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth© v5.2*
• *The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

• USB

• Rear USB (Total 8 ports)
• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C©)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C©)
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC*
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback"
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

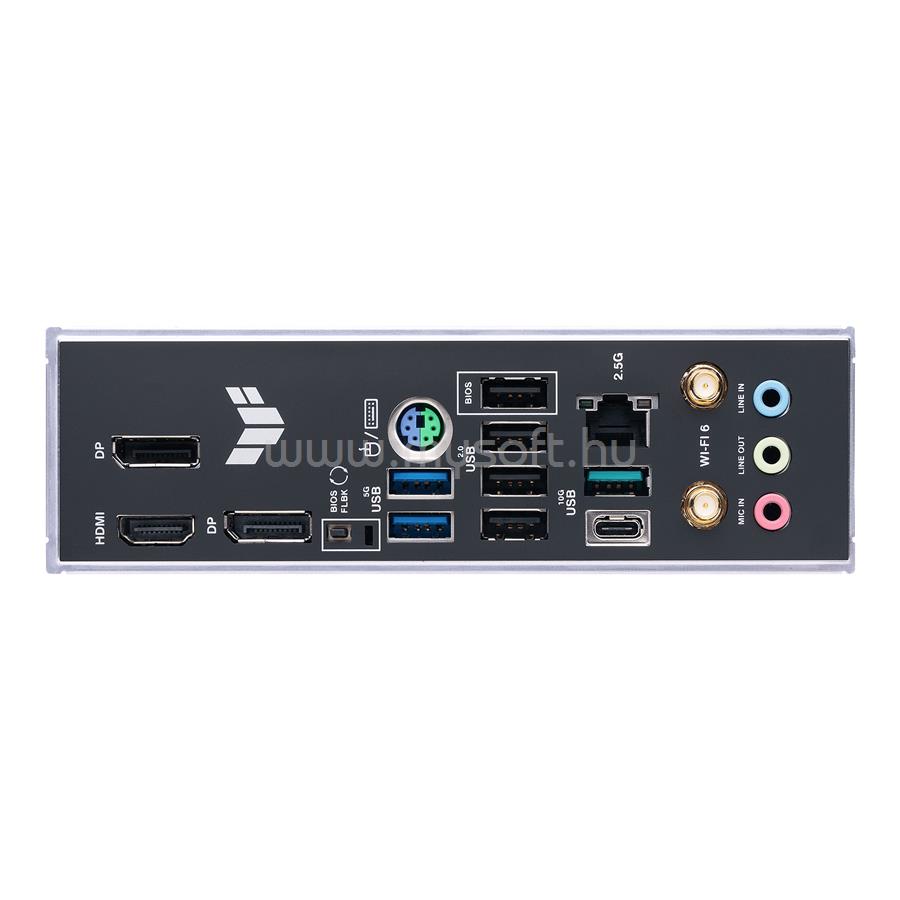

• Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 (10G) ports (1 x Type-A + 1 x USB Type-C©)
• 2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 2 x DisplayPort
• 1 x HDMITM port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 3 x Audio jacks
• 1 x BIOS FlashBack™ button
• 1 x PS/2 Keyboard/Mouse combo port

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 (5G) connector (supports USB Type-C© )
• 1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support 4 additional USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function

• Special Features

• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital power design with DrMOS)
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O
• ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield
• SafeSlot Core+
• SafeDIMM
• Aura Sync
• Aura RGB header
• Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancelation
• AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyASUS
• Norton 360 for Gamers(60 Days Free Trial)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Manageability

• WOL by PME, PXE

• Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x ASUS Wi-Fi moving antennas
• 1 x TUF Gaming sticker
• 1 x M.2 Rubber Package
• 1 x Screw package for M.2 SSD
• Documentation
• 1 x TUF Certification card
• 1 x User guide

• Operating System

• Windows© 11, Windows© 10 64-bit

• Form Factor

• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
