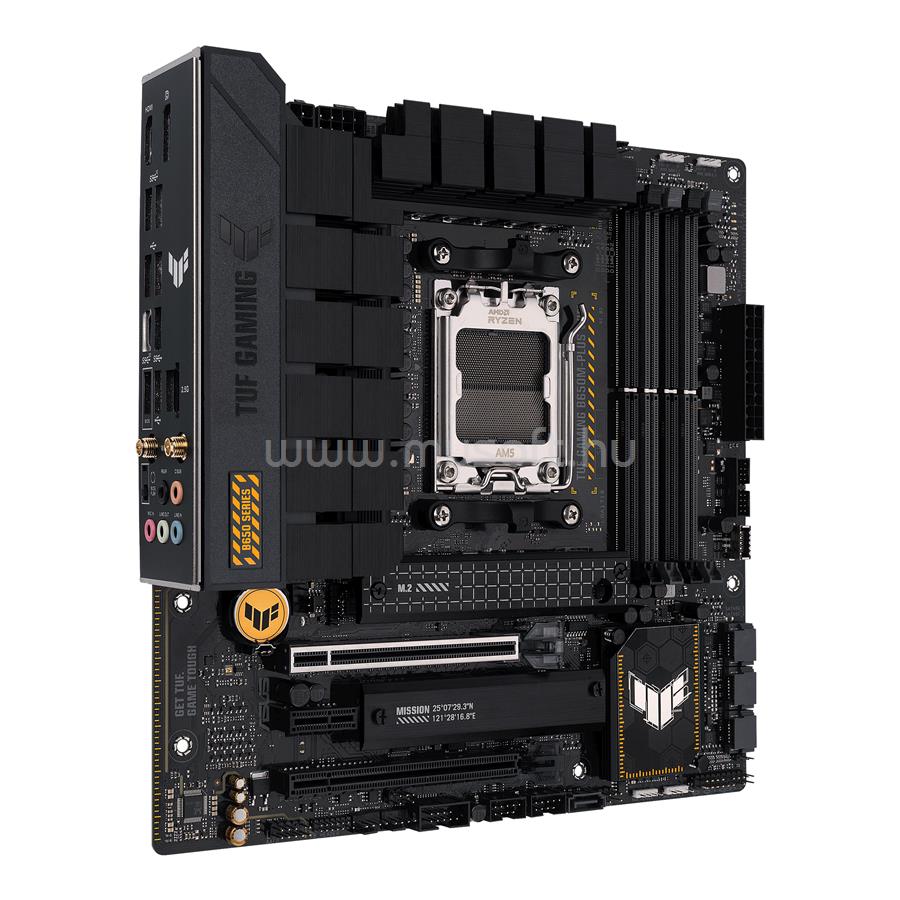

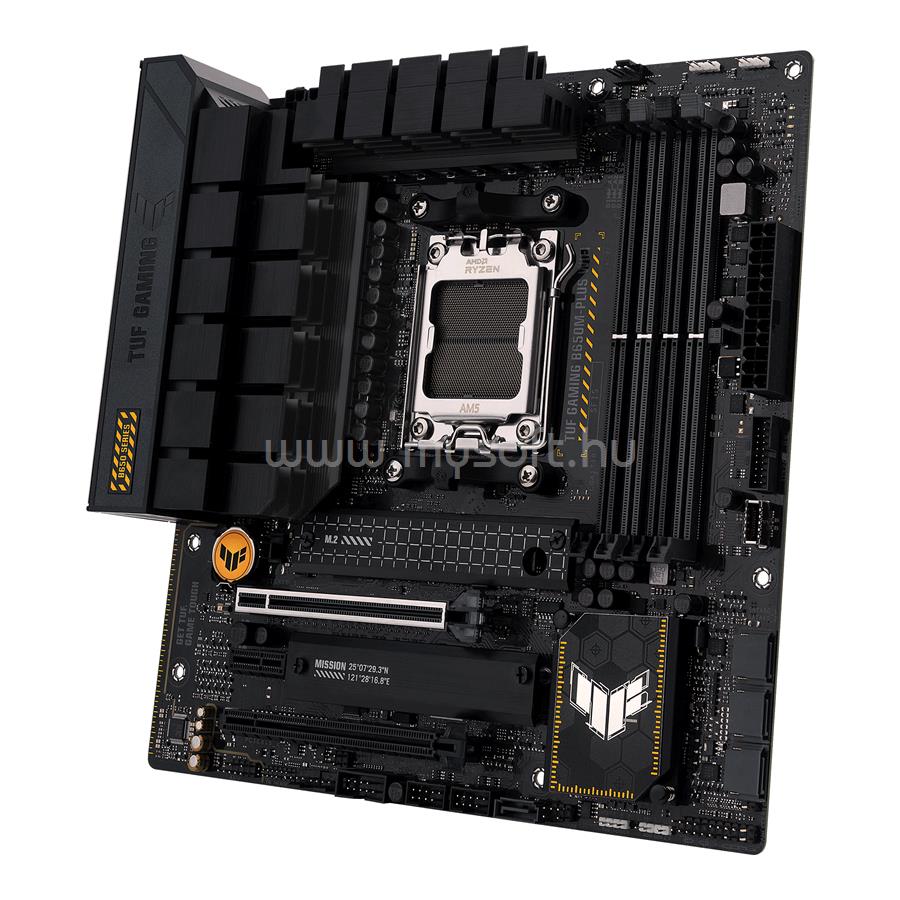

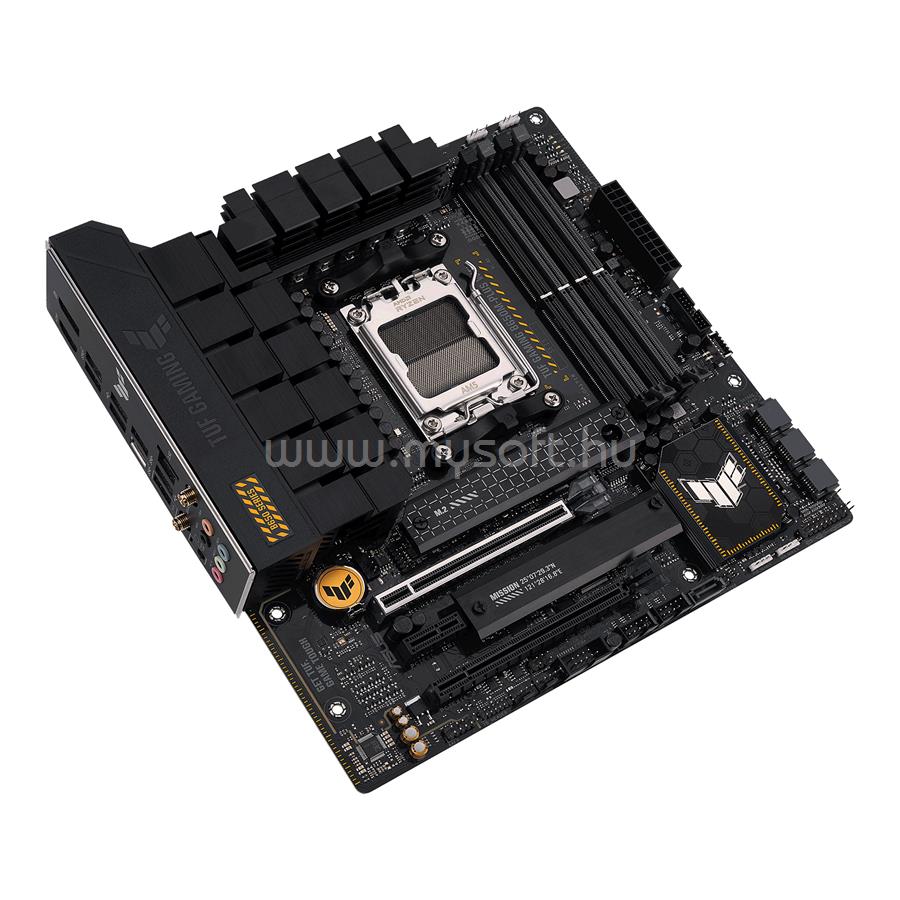

ASUS ALAPLAP TUF GAMING B650M-PLUS WIFI (AM5, MATX)

• CPU

• AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*
• * Refer to www.asus.com for CPU support list.

• Chipset

• AMD B650

• Memory

• 4 x DIMM, Max. 192GB, DDR5 7600+(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory*
• Dual Channel Memory Architecture
• Supports AMD EXTended Profiles for Overclocking (EXPO™)
• OptiMem II
• * Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
• ** Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

• Graphics

• 1 x DisplayPort*
• 1 x HDMI© port**
• * Supports max. 8K@60Hz as specified in DisplayPort 1.4.
• ** Supports 4K@60Hz as specified in HDMI 2.1.
• *** VGA resolution support depends on processors' or graphic cards' resolution.

• Expansion Slots

• AMD Ryzen 9000 & 7000 Series Desktop Processors*
• 1 x PCIe 4.0 x16 slot
• AMD Ryzen 8000 Series Desktop Processors
• 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
• AMD B650 Chipset
• 1 x PCIe 4.0 x16 slot (supports x4 mode)
• 1 x PCIe 4.0 x1 slot
• * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
• ** Specifications vary by CPU types.
• - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

• Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• AMD Ryzen™ 8000 Series Desktop Processors
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)**
• AMD B650 Chipset
• 4 x SATA 6Gb/s ports
• *AMD RAIDXpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.
• ** Specifications vary by CPU types.

• Ethernet

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

• Wireless & Bluetooth

• Wi-Fi 6
• 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5GHz frequency band
• Bluetooth v5.2

• USB

• Rear USB (Total 8 ports)
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C©)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 7 ports)
• 1 x USB 3.2 Gen 1 connector (supports USB Type-C©)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports

• Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• -Premium audio capacitors
• Dedicated audio PCB layers

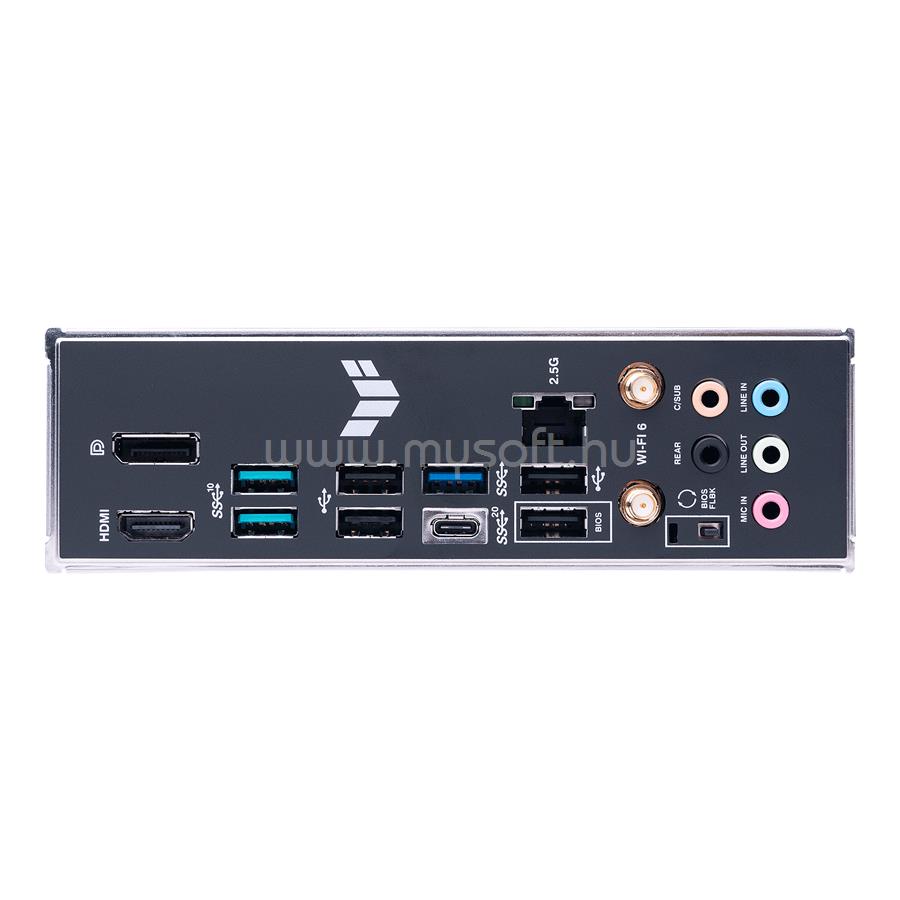

• Back Panel I/O Ports

• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C©)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 1 x USB 3.2 Gen 1 port (1 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI©port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack button

• Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 3 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• 1 x 4-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB Gen 1 connector (supports USB Type-C© )
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 4 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 1 x Aura RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thunderbolt (USB4©) header

• Special Features

• ASUS TUF PROTECTION
• DIGI+ VRM (- Digital power design with DrMOS)
• Enhanced DRAM Overcurrent Protection
• ESD Guards
• TUF LANGuard
• Overvoltage Protection
• SafeSlot Core+
• Stainless-Steel Back I/O
• ASUS Q-Design
• M.2 Q-Latch
• Q-DIMM
• Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
• Q-Slot
• ASUS Thermal Solution
• M.2 heatsink
• VRM heatsink design
• ASUS EZ DIY
• BIOS FlashBack™ button
• BIOS FlashBack™ LED
• ProCool
• Pre-mounted I/O shield
• SafeDIMM
• Aura Sync
• Aura RGB header
• Addressable Gen 2 headers

• Software Features

• ASUS Exclusive Software
• Armoury Crate
• Aura Creator
• Aura Sync
• Fan Xpert 2+
• Power Saving
• Two-Way AI Noise Cancellation
• AI Suite 3
• TurboV EVO
• DIGI+ VRM
• PC Cleaner
• TUF GAMING CPU-Z
• DTS Audio Processing
• MyAsus
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

• BIOS

• 256 Mb Flash ROM, UEFI AMI BIOS

• Operating System

• Windows䈏, Windows䈎 64-bit

• Form Factor

• micro-ATX Form Factor
• 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
