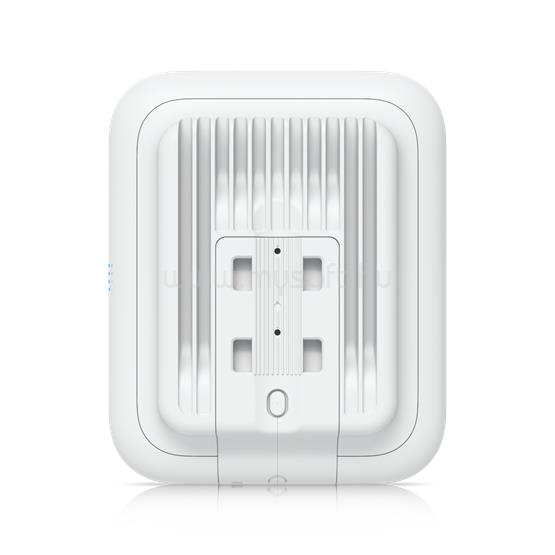

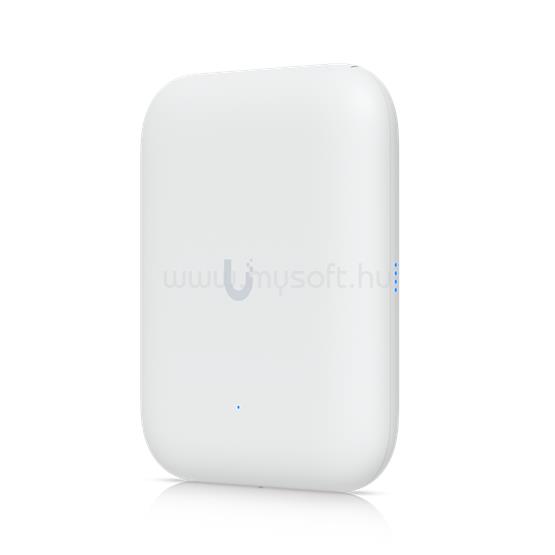

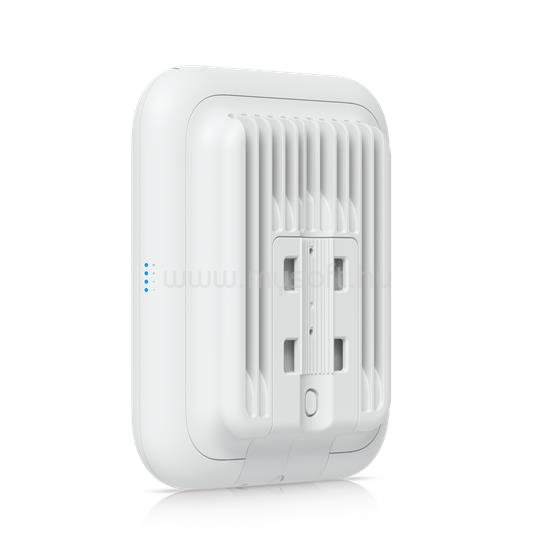

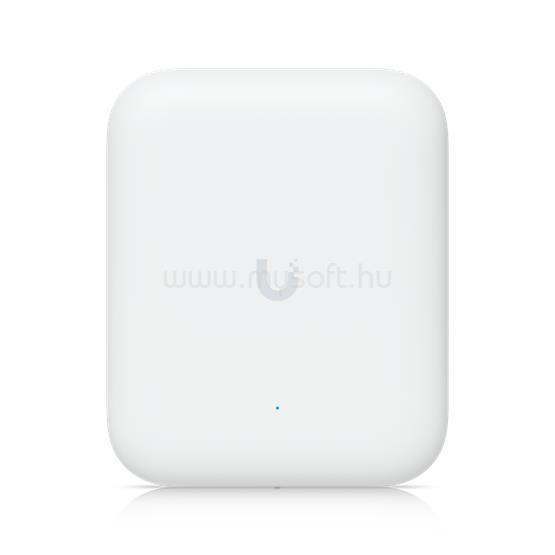

UBIQUITI UNIFI 7 OUTDOOR IPX6, 802.11BE, 2.5GBE, WIFI 7 KÜLTÉRI ACCESS POINT

• Mechanical

• Dimensions
• 170 x 208 x 54.5 mm (6.7 x 8.2 x 2.1")
• Weight
• 1.2 kg (2.6 lb)
• Enclosure material
• UV-stabilized polycarbonate, aluminum alloy
• Mount material
• Polycarbonate, SGCC steel
• Pole mount diameter
• 25-60 mm (1-2.36") on pipe outer diameter
• Wind survivability
• 74.6 N at 200 km/h (16.8 lbf at 125 mph)
• Weatherproofing
• IPX6

• Hardware

• Networking interface

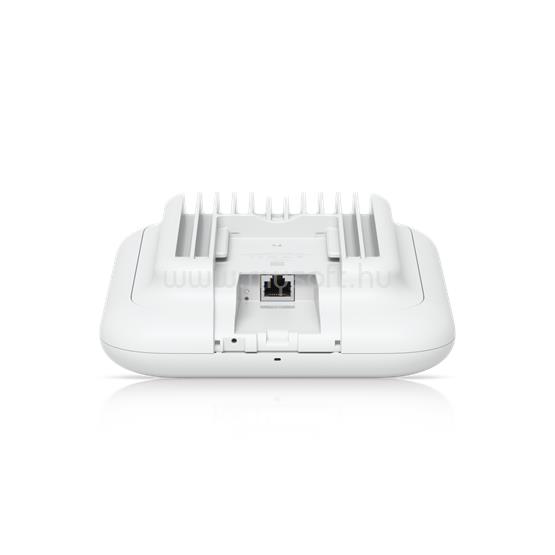

• (1) 1/2.5 GbE RJ45 port
• Management interface
• Ethernet
• Power method
• PoE+
• Power supply
• UniFi PoE Switch
• Supported voltage range
• 42.5-57V DC
• Max. power consumption
• 19W
• Max. TX power
• 2.4 GHz: 23 dBm
• 5 GHz: 26 dBm
• 6 GHz: -
• MIMO
• 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
• 5 GHz: 2 x 2 (DL/UL MU-MIMO)
• 6 GHz: -
• Max. data rate
• 2.4 GHz: 688 Mbps (BW40)
• 5 GHz: 4.3 Gbps (BW240)
• 6 GHz: -
• Antenna gain
• 2.4 GHz: Directional internal: 8 dBi/External omni: 3 dBi
• 5 GHz: Directional internal: 12.5 dBi/External omni: 4 dBi
• 6 GHz: -
• Antenna beamwidth
• 2.4 GHz: 90°
• 5 GHz: 45°
• 6 GHz: -
• Antennas
• (1) Directional internal antenna

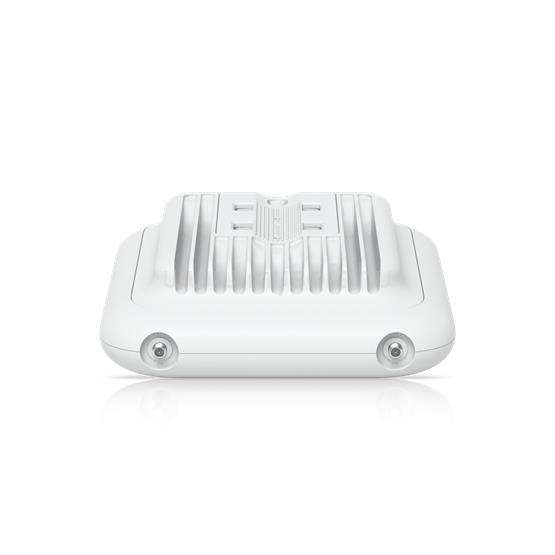

• (2) External omni antennas
• (2) RP-SMA connectors for external antenna
• LEDs
• (1) Power: white/blue
• (4) Mesh signal: blue
• Button
• Factory reset
• Mounting
• Wall, ceiling, pole (Included)
• Ambient operating temperature
• -30 to 60° C
• Ambient operating humidity
• 5 to 95% noncondensing
• Certifications
• CE, FCC, IC

• Software

• WiFi standards
• 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
• Wireless security
• WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
• BSSID
• 8 per radio
• VLAN
• 802.1Q
• Advanced QoS
• Per-user rate limiting
• Guest traffic isolation
• Supported
• Concurrent clients
• 200+

• Supported Data Rates

• 802.11a
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11b
• 1, 2, 5.5, 11 Mbps
• 802.11g
• 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n
• 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
• 802.11ac
• 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
• 802.11ax (WiFi 6)
• 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
• 802.11be (WiFi 7)
• 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)

• Application Requirements

• UniFi Network
• Version 8.3 and later

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 1 év gyártó által biztosított szervizgarancia
