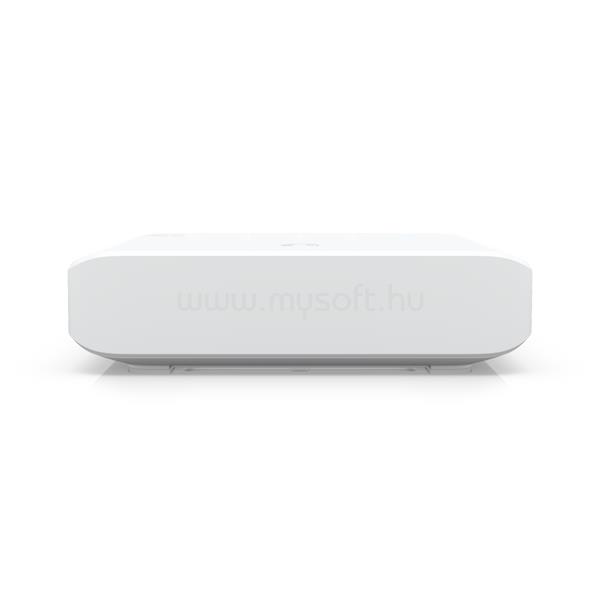

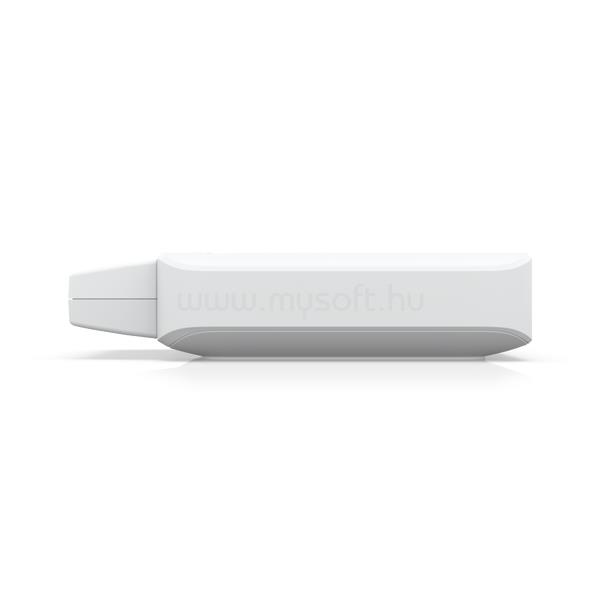

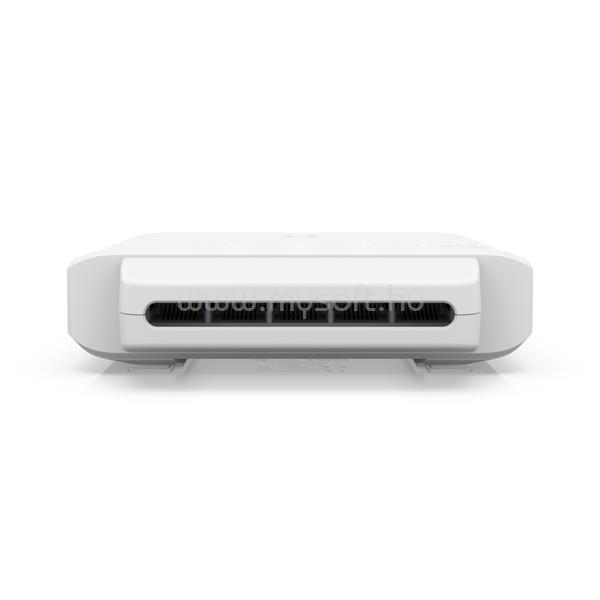

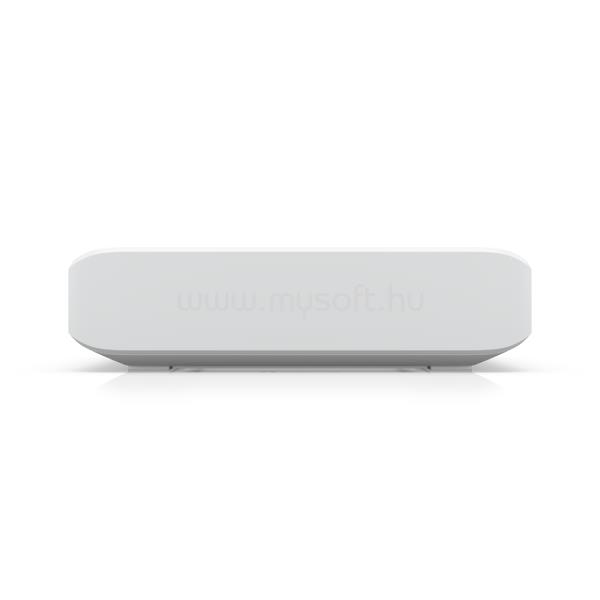

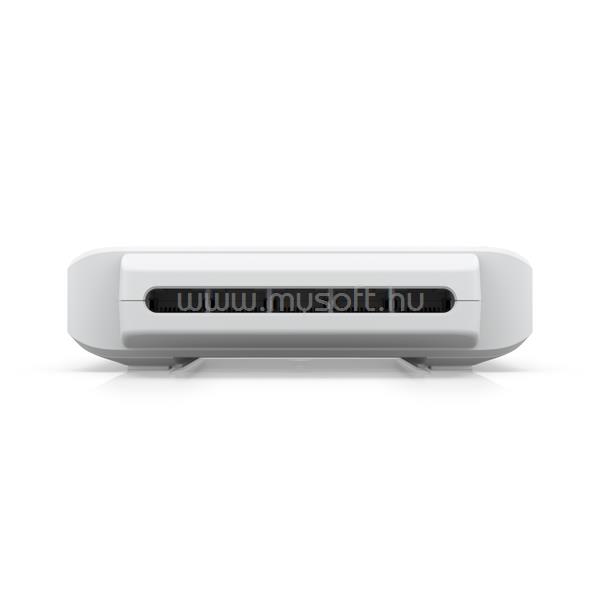

UBIQUITI SWITCH - USW-FLEX - UNIFI INDOOR/OUTDOOR 5PORT GIGABIT SWITCH WITH POE SUPPORT

• USW-Flex

• Dimensions
• 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10")
• Weight
• 230 g (8.11 oz)
• Networking Interfaces

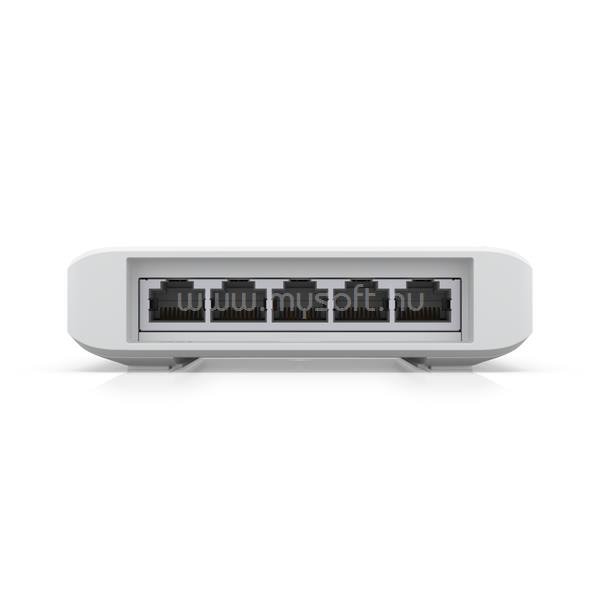

• (5) 10/100/1000 Mbps RJ45 Ports
• Management Interface
• Ethernet In-Band
• PoE Out (Ports 2-5)
• 802.3at (Pins 1, 2+; 3, 6-)
• Max Power Consumption (Excluding PoE Output)
• 5W
• Max PoE Wattage Per Port
• 25W
• Total PoE Power Budget
• Powered by 802.3af
• 8W
• Powered by 802.3at
• 20W
• Powered by 802.3bt
• 46W
• Powered by PoE Adapter (Enabled in Controller)
• 46W
• Voltage Range
• 802.3af
• 44 - 57V
• 802.3at/bt
• 50 - 57V

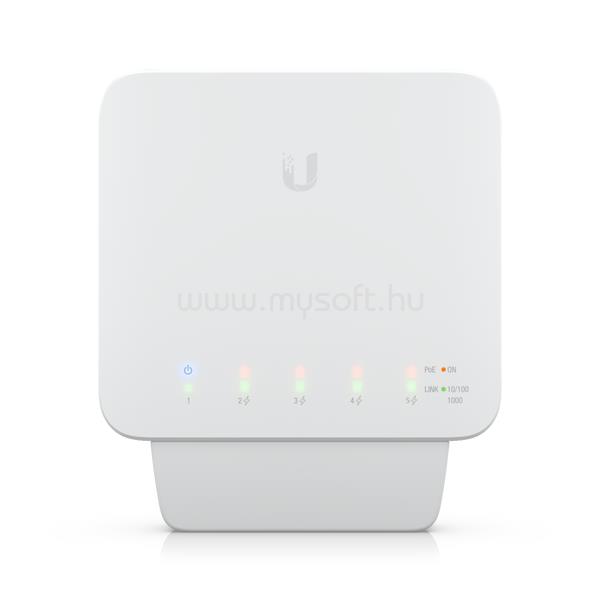

• LEDs
• System
• Status
• RJ45 Data Ports
• PoE; Link/Speed/Activity
• ESD/EMP Protection
• +/- 16kV Air, +/- 16kV Contact
• Operating Temperature
• 46W PoE Output
• -40 to 55° C (-40 to 131° F)
• 25W PoE Output
• -40 to 65° C (-40 to 149° F)
• Operating Humidity
• 5 to 95% Noncondensing
• Certifications
• CE, FCC, IC

• Power Method (Port 1)

• PoE Type
• Recommended PoE Source
• 802.3af/at (Pins 1, 2+; 3, 6-)
• USW-24-PoE (sold separately)
• 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
• USW-Pro-24-PoE (sold separately)
• 50V/60W PoE Adapter
• PoE Injector, POE-50-60W-WH or POE-50-60W (sold separately)

• USW-Flex-Utility

• Dimensions (with Mount)
• 249 x 218 x 60 mm (9.80 x 8.58 x 2.36")
• Weight (with Mount)
• 740 g (26.10 oz)

• USW-Flex-Utility 60W PoE Adapter

• Dimensions
• 118.5 x 63 x 34.7 mm (4.66 x 2.48 x 1.36")
• Weight
• 206 g (7.27 oz)
• Output Voltage
• 54V, 1.11A
• Rated Voltage
• 100-240VAC
• Input Current
• 1.5A (Max.)
• Efficiency
• > 86%
• Output Ripple
• 200mVpp
• Line Regulation
• < 1%
• Load Regulation
• < 3%
• 4-Pair Powering
• Pins 1, 2, 4, 5+ and Pins 3, 6, 7, 8-
• Operating Temperature
• -20 to 60 ? C (-4 to 140 ? F)
• Storage Temperature
• -30 to 70 ? C (-22 to 158 ? F)
• Operating Humidity
• 5 to 90%, Noncondensing
• Surge Immunity
• 4kV Difference and Common Mode
