UBIQUITI USW-PRO-MAX-16 12PORT GBE LAN 4X2.5GBE MULTI-GIGABIT LAN 2X SFP+ PORT L3 MENEDZSELHETŐ SWITCH

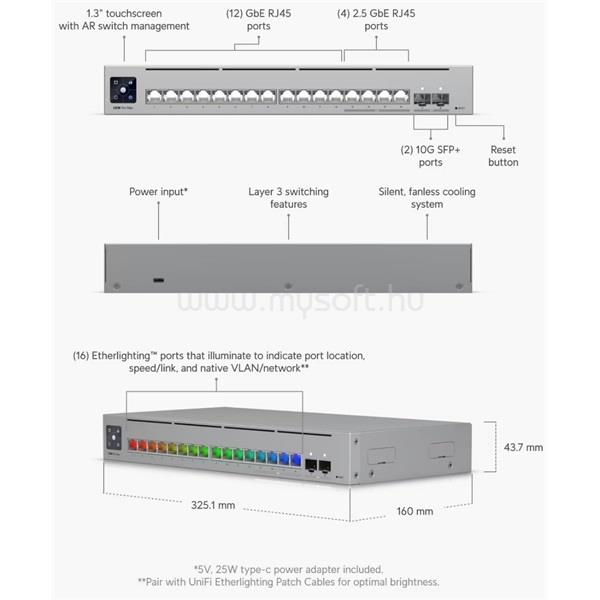

• Mechanical

• Dimensions
• 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")
• Weight
• 1.95 kg (4.3 lb)
• Enclosure material
• SGCC steel

• Hardware

• Management interface
• Ethernet In-Band
• Networking interface
• (12) GbE RJ45 ports
• (4) 1/2.5 GbE RJ45 ports
• (2) 10G SFP+ ports
• Total non-blocking throughput
• 42 Gbps
• Switching capacity
• 84 Gbps
• Forwarding rate
• 62.496 Mpps
• Power method
• Type-C adapter
• Power supply
• 5V, 25W
• Max. power consumption
• 25W
• LCM display
• (1) 1.3" touchscreen
• Button
• Factory reset
• Ambient operating temperature
• -5 to 40° C (23 to 104° F)
• Ambient operating humidity
• 10 to 90% noncondensing
• Certifications
• CE, FCC, IC

• Switching Features

• Layer 2 features
• IGMP snooping
• STP / RSTP with priorities and port-level disable
• Port isolation
• Storm control
• Voice VLAN
• Port mirroring
• LACP port aggregation
• Multicast / broadcast rate limiting
• MAC address blocking
• Flow control
• 802.1X control
• Jumbo frames
• Proprietary loop protection
• DHCP snooping / guarding
• Egress rate limit
• LLDP-MED
• Port restricted by MAC
• Device isolation with ACLs
• Layer 3 features
• DHCP for locally-managed networks
• DHCP relay
• Inter-VLAN routing between networks on same switch
• Static routing between local networks
• Network isolation with ACLs

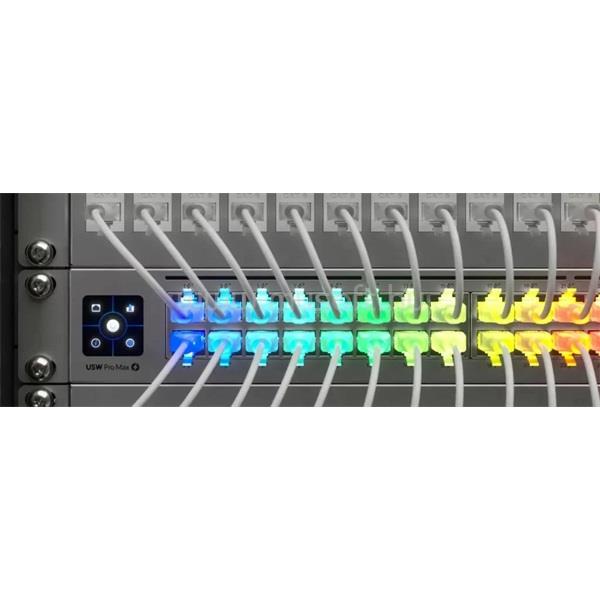

• Etherlighting

• Ethernet
• Locating
• Speed/link
• Native VLAN/network
• SFP+
• Locating
• Speed/link
• Native VLAN/network

• Application Requirements

• UniFi Network
• Version 8.1.127 and later
