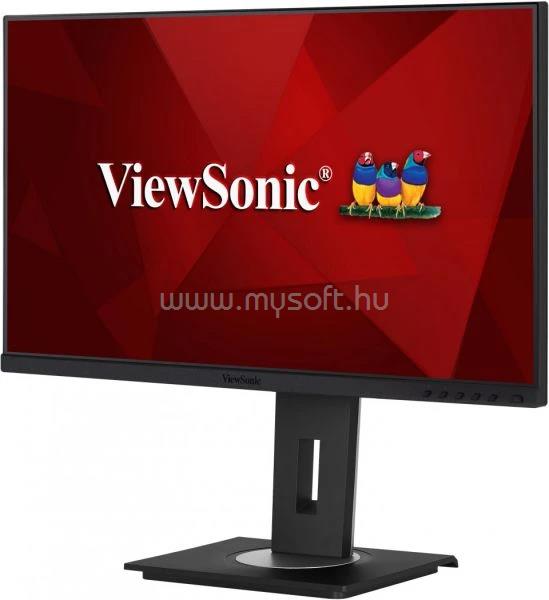

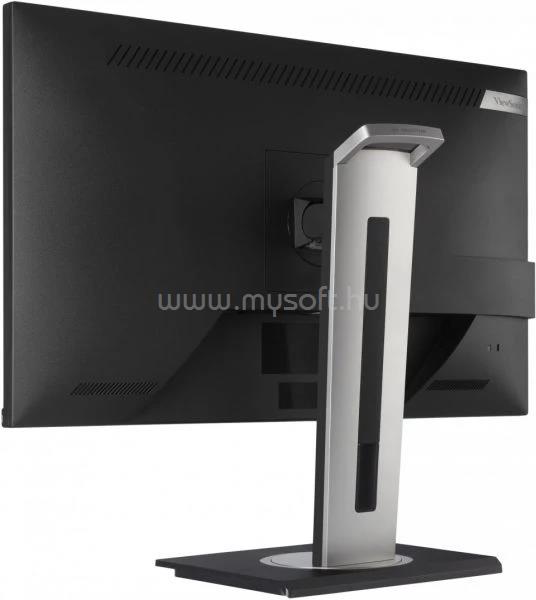

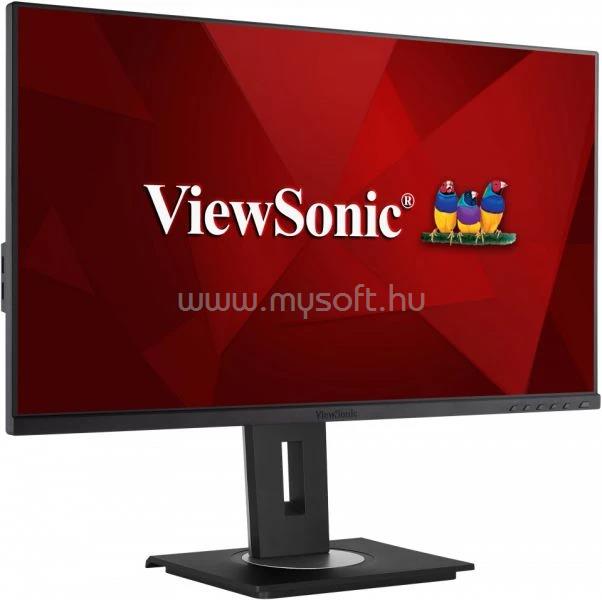

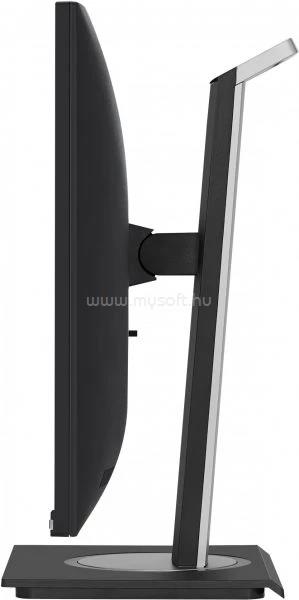

VIEWSONIC VG2756-4K MONITOR

Kijelző

• Képátló: 27"
  Felbontás: 3840x2160
  Panel: IPS
  Képarány: 16:9

Csatlakozók

• • 0x VGA
  • 0x DVI
  • 1x DisplayPort
  • 2x HDMI
  • TV-tuner

• Display

• Display Size (in.)
• 27
• Viewable Area (in.)
• 27
• Panel Type
• IPS Technology
• Resolution
• 3840 x 2160
• Resolution Type
• UHD (Ultra HD)
• Static Contrast Ratio
• 1,000:1 (typ)
• Dynamic Contrast Ratio
• 80M:1
• Light Source
• LED
• Brightness
• 350 cd/m2 (typ)
• Colours
• 1.07B
• Colour Space Support
• 10 bit (8 bit + A-FRC)
• Aspect Ratio
• 16:9
• Response Time (Typical GTG)
• 5ms
• Response Time (GTG w/OD)
• 5.8ms
• Viewing Angles
• 178° horizontal, 178° vertical
• Backlight Life (Hours)
• 30000 Hrs (Min)
• Curvature
• Flat
• Refresh Rate (Hz)
• 60
• Blue Light Filter
• Yes
• Flicker-Free
• Yes
• Color Gamut
• NTSC: 77% size (Typ)
• sRGB: 109% size / 100% coverage (Typ)
• Pixel Size
• 0.155 mm (H) x 0.155 mm (V)
• Surface Treatment
• Anti-Glare, Hard Coating (3H)

• Compatibility

• PC Resolution (max)
• 3840x2160
• Mac©Resolution (max)
• 3840x2160
• PC Operating System
• Windows 11 certified; macOS tested
• Mac Resolution (min)
• 3840x2160

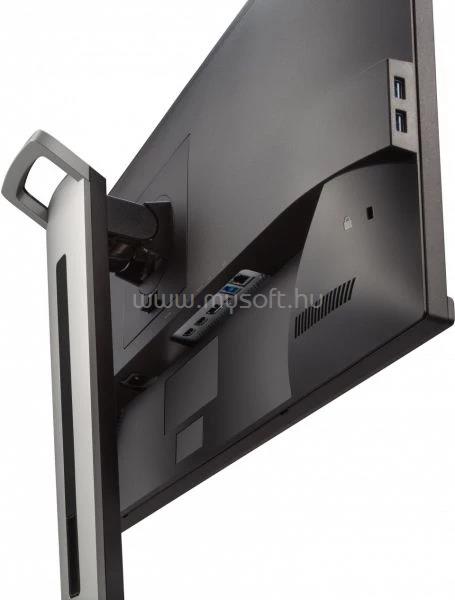

• Connector

• USB 3.2 Type A Down Stream
• 2
• USB 3.2 Type B Up Stream
• 1
• USB 3.2 Type C Up Stream; DisplayPort Alt mode
• 1 (90W power charger)
• HDMI 2.0 (with HDCP 2.2)
• 2
• DisplayPort
• 1
• Power in
• 3-pin Socket (IEC C14 / CEE22)
• Ethernet LAN (RJ45)
• 1

• Audio

• Internal Speakers
• 2Watts x2

• Power

• Eco Mode (Conserve)
• 16.81W
• Eco Mode (optimized)
• 21.12W
• Consumption (typical)
• 26.35W
• Consumption (max)
• 38.94W
• Voltage
• AC 100-240V
• Stand-by
• 0.5W
• Power Supply
• Internal Power Supply

• Additional Hardware

• Kensington Lock Slot
• 1
• Cable Organization
• Yes

• Controls

• Physical Controls
• Key 1 (eye), Key 2, Key 3, Key 4, Key 5, Key 6 (power)
• On Screen Display
• Input Select, Audio Adjust, ViewMode, Color Adjust, Manual Image Adjust, Setup Menu

• Operating Conditions

• Temperature
• 32°F to 104°F (0°C to 40°C)
• Humidity (non-condensing)
• 20% to 90%

• Wall Mount

• VESA Compatible
• 100 x 100 mm

• Input Signal

• Frequency Horizontal
• 15 ~ 150KHz
• Frequency Vertical
• 24 ~ 75Hz

• Video Input

• Digital Sync
• TMDS - HDMI (v2.0), PCI-E - DisplayPort (v1.2), Micro-Packet - Type C

• Ergonomics

• Height Adjust (mm)
• 130
• Swivel
• 120°

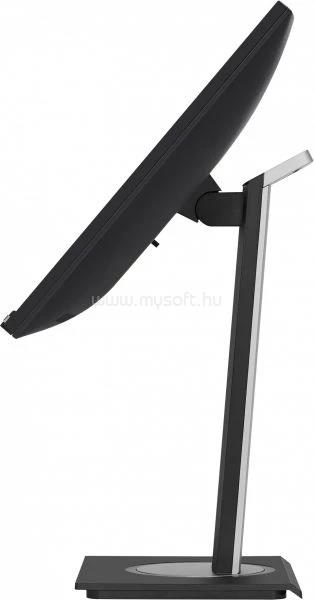

• Tilt (Forward/Back)
• -5o / 40o

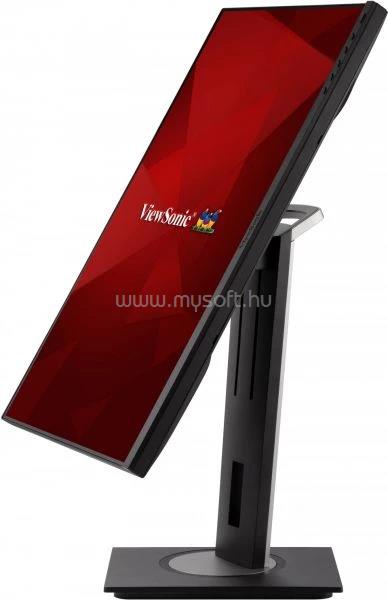

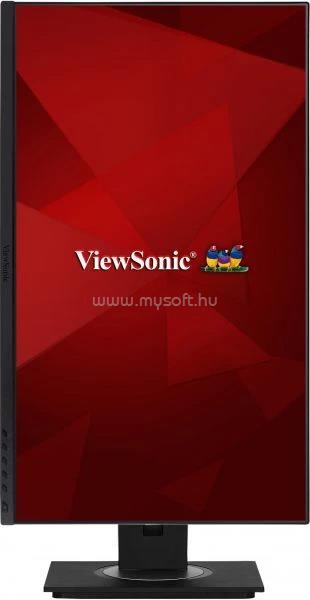

• Pivot (Right/Left)
• 90° / 90°

• Weight (imperial)

• Net (lbs)
• 16.5
• Net Without Stand (lbs)
• 11.2
• Gross (lbs)
• 23.6

• Weight (metric)

• Net (kg)
• 7.5
• Net Without Stand (kg)
• 5.1
• Gross (kg)
• 10.7

• Dimensions (imperial) (wxhxd)

• Packaging (in.)
• 27.2 x 16.9 x 8.6
• Physical (in.)
• 24.1 x 15.99~20.99 x 8
• Physical Without Stand (in.)
• 24.1 x 14.2 x 2

• Dimensions (metric) (wxhxd)

• Packaging (mm)
• 692 x 430 x 218
• Physical (mm)
• 612 x 406.19~533.24 x 202
• Physical Without Stand (mm)
• 612 x 362 x 52

• General

• PACKAGE CONTENTS
• VG2756-4K x1
• 3-pin Plug (IEC C13 / CEE22) x1
• HDMI Cable (v2.0; Male-Male) x1
• USB Type-C Cable (Male-Male) x1
• USB A/B Cable (v3.2; Male-Male) x1
• Quick Start Guide x1

Garancia fogyasztók részére

• 2 év kötelező jótállás (gyártó által biztosított szervizgarancia)

Garancia nem fogyasztók részére

• 2 év gyártó által biztosított szervizgarancia
