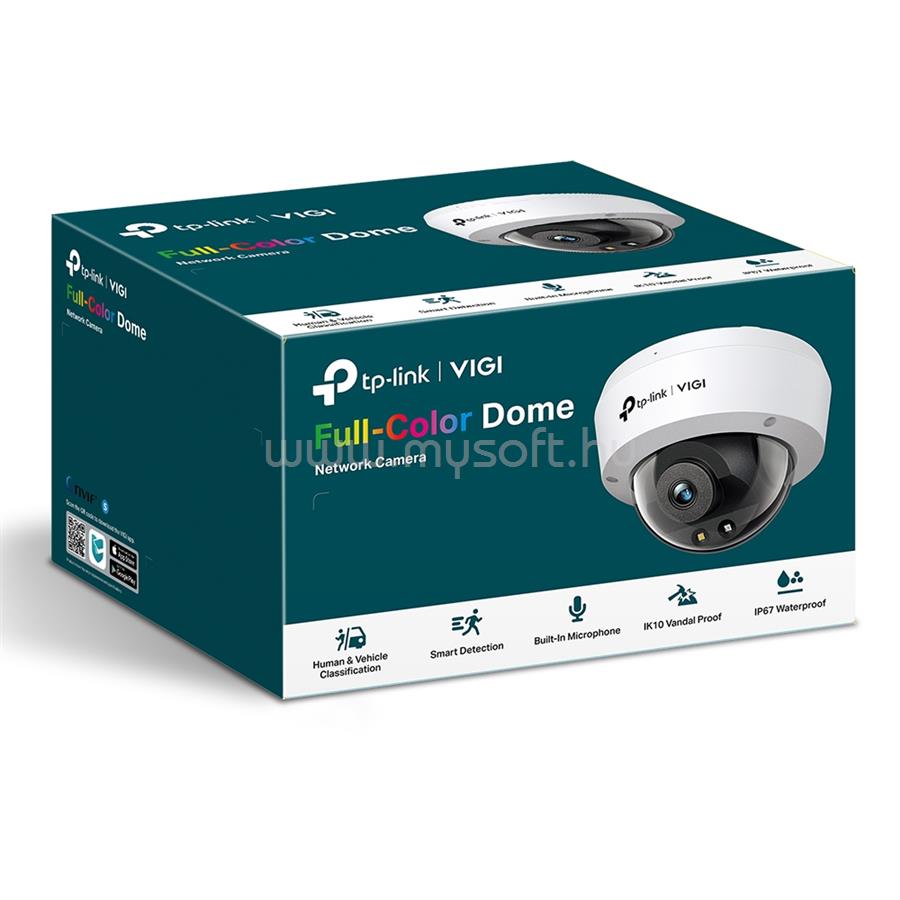

TP-LINK VIGI C250 (2.8MM) 5MP FULL-COLOR DOME NETWORK CAMERA

• KAMERA

• Képérzékelő
• 1/2.7" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Min. szükséges megvilágítás
• 0.005 Lux; 0 Lux with IR/white light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Day/Night/Auto/Schedule-Switch

• LENS

• Type
• Fixed Focal Lens
• Focal Length
• 2.8 mm
• Aperture
• 2.8 mm: F1.6
• FOV
• 2.8mm:
• Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
• Lens Mount
• M12*P 0.5
• DORI Distance
• 2.8 mm
• Detect: 64 m (209 ft)
• Observe: 27 m (87 ft)
• Recognize: 13 m (42 ft)
• Identify: 6 m (21 ft)

• VIDEO

• Max. Resolution
• 2880 X 1620
• Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 704x576,640x480, 352x288, 320x240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• Main Profile/High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile
• H.265+
• Main Stream Supported
• Video Bit Rate
• Main Stream: 256 Kbps to 6 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• ILLUMINATOR

• IR LED
• Quantity: 1
• Range: 30m
• Wavelength: 850nm
• White LED
• Quantity: 1
• Range: 30m
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• ANGLE ADJUSTMENT (MANUAL)

• Range
• Pan: 0° to 360°, Tilt: 0° to 85°

• IMAGE

• Image Settings
• Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• 120 dB
• SNR
• > 52 dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• HANG

• Hangkommunikáció
• N/A
• Hangbemenet
• Yes
• Hangkimenet
• N/A
• Hangtömörítés
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• HÁLÓZAT

• Biztonság
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Szabvány
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• API
• Open Network Video Interface (Profile S)
• Simultaneous Live View
• 3 Main Streams & 3 Sub-Streams
• Client
• VIGI App, VIGI Security Manager, Web UI
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• ONVIF
• Yes

• FIZIKAI KEZELŐFELÜLET

• Hálózati csatlakozás
• 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• Alarm
• N/A
• Reset Button
• Yes
• Power
• DC Power Port
• On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
• Built-in Microphone
• Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker
• N/A
• Audio
• N/A

• FIGYELMEZTETÉSI ÉS ESEMÉNYKEZELÉSI VEZÉRLÉS

• Smart Event
• Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
• Basic Event
• Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
• Alarm Linkage
• Memory Card Video Recording, Message Push, White Light Flashing
• Linkage Method
• N/A
• Output Notification
• Message Push

• DEEP LEARNING FUNCTION

• Multi-Target-Type Detection
• Supports Simultaneous Detection and Capture of Human Body and Vehicle
• Face Capture
• N/A
• Face Comparison
• N/A

• ÁLTALÁNOS

• Csomagolás tartalma
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Operating Temperature
• -30-60 °C
• Storage Temperature
• -40-60 °C
• Storage Humidity
• 95% or Less (Non-Condensing)
• Operating Humidity
• 95% or Less (Non-Condensing)
• Material
• Plastic
• Net Weight
• 0.28 Kg
• Gross Weight
• 0.47 Kg
• Power Supply
• 12V DC +/- 5%, Max. 7 W, 5.5mm Coaxial Power Plug
• PoE: 802.3at, class 0, Max. 8 W
• Protection
• IP67, IK10
• Product Dimensions (L x W x H)
• 115x85.7 mm

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
