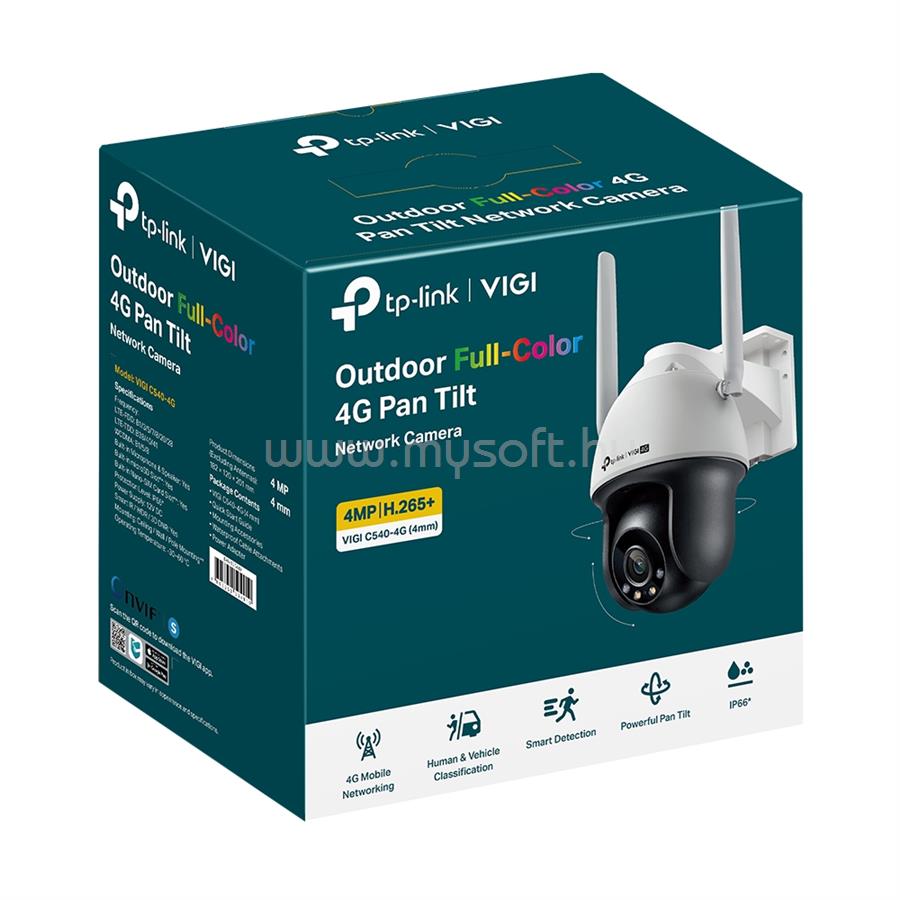

TP-LINK VIGI C540-4G (4MM) IP & WI-FI-S KAMERA KÜLTÉRI ÉJJELLÁTÓ 4MEGAPIXEL, 4MM OBJEKTÍV 3G/4G SIM SLOT

• KAMERA

• Képérzékelő
• 1/3.06" Progressive Scan CMOS
• Shutter Speed
• 1/3 to 1/10000 s
• Slow Shutter
• Yes
• Min. szükséges megvilágítás
• 0.005 Lux; 0 Lux with IR/White Light
• Day/Night Mechanism
• IR Cut Filter
• Day/Night Switch
• Unified/ Scheduled/ Auto

• LENS

• Type
• Fixed Focal Lens
• Focal Length
• 4 mm
• Aperture
• F1.6
• FOV
• Horizontal FOV: 80°, Vertical FOV: 43°, Diagonal FOV: 94°
• Lens Mount
• M12*0.5
• DORI Distance
• Detect: 80 m (262 ft)
• Observe: 33 m (109 ft)
• Recognize: 16 m (52 ft)
• Identify: 8 m (26 ft)

• PTZ

• Pan/tilt Range
• Pan: 0° to 348°, Tilt: 0° to 120°
• Pan/tilt Speed
• Pan Speed:
• Configurable from 8° to 44°/s; Preset Speed: 44°/s
• Tilt Speed:
• Configurable from 8° to 44°/s, Preset Speed 44°/s
• Manual Control Speed
• Configurable from 8° to 35°/s
• Presets
• 300
• Patrol Scan
• 8 patrols, up to 8 presets for each patrol
• Power-off Memory
• Yes;
• Auto restore to previous PT and lens status after power failure
• Park Action
• Yes;
• Preset; Patrol Scan
• 3D Positioning
• Yes

• ANGLE ADJUSTMENT (MANUAL)

• Range
• Pan: 0° to 348°
• Tilt: 0° to 120°

• ILLUMINATOR

• IR LED
• Quantity: 2
• Range: 30m
• Wavelength: 850nm
• White LED
• Quantity: 2
• Range: 30m
• Illuminator On/Off Control
• Auto/Scheduled/Always on/Always off

• VIDEO

• Max. Resolution
• 2560 X 1440
• Main Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Sub-Stream
• Frame Rate:
• 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
• 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
• Resolution:
• 640x480, 352x288, 320x240
• Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
• Bit Rate Control
• CBR, VBR
• Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264
• Sub-Stream: H.265/H.264
• H.264 Type
• Main Profile/High Profile
• H.264+
• Main Stream Supported
• H.265 Type
• Main Profile
• H.265+
• Main Stream Supported
• Video Bit Rate
• Main Stream: 256 Kbps to 3 Mbps
• Sub-Stream: 64 Kbps to 512 Kbps

• IMAGE

• Image Settings
• Mirror
• Brightness
• Contrast
• Saturation
• Sharpness
• Exposure, WDR,
• White Balance
• Prevent Overexposure to Infrared Light
• HLC Adjustable by Client Software
• Rotation (90°/270°)
• Image Enhancement
• BLC/3D DNR/HLC/SmartIR
• Wide Dynamic Range
• DWDR
• SNR
• > 52 dB
• Image Parameters Switch
• Yes
• Privacy Mask
• Up to 4 Masks
• ROI
• 1 Region
• OSD Setting
• Yes

• HANG

• Hangkommunikáció
• Two-Way Audio
• Hangbemenet
• Yes
• Hangkimenet
• Yes
• Hangtömörítés
• Yes
• Audio Sampling Rate
• 8KHz
• Environment Noise Filtering
• Yes
• Audio Bit Rate
• 64 Kbps(G.711 alaw)

• HÁLÓZAT

• Szabvány
• TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• ONVIF
• Yes
• API
• ONVIF
• Simultaneous Live View
• 2 Main Streams & 2 Sub-Streams
• Client
• VIGI App, VIGI Security Manager, Web UI
• Web Browser
• Google Chrome© 57 and above
• Firefox© 52 and above
• Safari© 11 and above
• Microsoft© Edge 91 and above
• Cloud
• Yes
• Biztonság
• Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication

• 4G

• Standard
• LTE-TDD/LTE-FDD/WCDMA
• SIM Type
• Nano SIM
• Category
• 4
• Frequency
• LTE-FDD: B 1/3/5/7/8/20/28
• LTE-TDD: B 38/40/41
• WCDMA: B 1/5/8

• FIGYELMEZTETÉSI ÉS ESEMÉNYKEZELÉSI VEZÉRLÉS

• Smart Event
• Human & Vehicle Classification
• Intrusion Detection
• Line-Crossing Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned Detection
• Object Removal Detection
• People Detection
• Vehicle Detection
• Basic Event
• Motion Detection
• Video Tampering Detection
• Exception (Illegal Login)
• Alarm Linkage
• Memory Card Video Recording
• Message Push
• Audible Warning
• White Light Flashing
• Linkage Method
• N/A
• Output Notification
• Message Push

• FIZIKAI KEZELŐFELÜLET

• Hálózati csatlakozás
• 1 RJ45 10/100M Self-Adaptive Ethernet Port
• Alarm
• N/A
• Reset Button
• Yes
• Power
• DC Power Port
• On-board Storage
• Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Nano-SIM Card Slot
• Yes
• Built-in Microphone
• Yes; Records Anything Going on within a 15-ft Radius of the Camera
• Built-in Speaker
• Yes
• Audio
• N/A

• ÁLTALÁNOS

• Operating Temperature
• -30-60 °C
• Storage Temperature
• -40-60 °C
• Operating Humidity
• 95% or Less (Non-Condensing)
• Storage Humidity
• 95% or Less (Non-Condensing)
• Csomagolás tartalma
• VIGI Network Camera
• Quick Start Guide
• Waterproof Cable Attachments
• Mounting Accessories
• Power Adapter
• Material
• Plastic
• Net Weight
• 0.69 Kg
• Gross Weight
• 1.16 Kg
• Power Supply
• 12V DC/1A, 5.5mm Coaxial Power Plug
• Antenna
• Quantity: 2
• Type:
• 690~960&1710~2690MHz Dipole Omni-Directional Antenna
• Gain:
• Ant1:0.84dBi@690~960MHz, 2.85dBi@1710~2690MHz
• Ant2:0.74dBi@690~960MHz, 3.06dBi@1710~2690MHz
• Protection
• IP66
• Product Dimensions (L x W x H)
• 120 × 182 × 201 mm (excluding antennas)
• Certifications
• CE, RCM, BSMI, RoHS, NCC
