TP-LINK VIGI NVR1004H VIDEO RECORDER 4 CSATORNÁS (1X SATA)

• VIDEO AND AUDIO

• IP Video Input
• 4-Channel
• Incoming Bandwidth
• 80 Mbps
• Outgoing Bandwidth
• 60 Mbps
• HDMI Output Resolution
• 1 Channel, Resolution: 3840 ×2160/30Hz, 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output Resolution
• 1 Channel, Resolution: 1920 × 1080/60Hz, 1680× 1050/60Hz, 1440 × 900/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode
• HDMI/VGA Simultaneous Output
• Multi-View Display
• 1/4

• DECODING

• Audio Compression
• G.711A/G.711U/G.726
• Video Compression
• H.265+/H.265/ H.264+/H.264
• Record Resolution
• 8 MP / 5 MP / 4 MP / 3 MP / 1080p / UXGA / 720p / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
• Synchronous Playback
• 4-Channel
• Capability
• 2-ch @ 8MP, 4-ch @ 4MP

• RECORD MANAGEMENT

• Record Mode
• Manual Recording
• Scheduling Recording
• Motion Detection Recording
• Playback Mode
• Instant Playback
• Regular Playback
• Tag Playback
• Event Playback
• Backup Mode
• Regular Backup
• Video Clip Backup
• Playback Function
• Play
• Pause
• Stop
• Fast Forward
• Fast Backward
• Play By Frame
• Full Screen
• Video Clip
• Export Clip
• Digital Zoom
• Lock Recording
• Audio On/Off

• HÁLÓZAT

• Szabvány
• UPnP (Plug and Play), NTP (Network Timing)
• Mobile Phone Access
• Android, iOS
• Web Browser
• Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability
• ONVIF, CGI

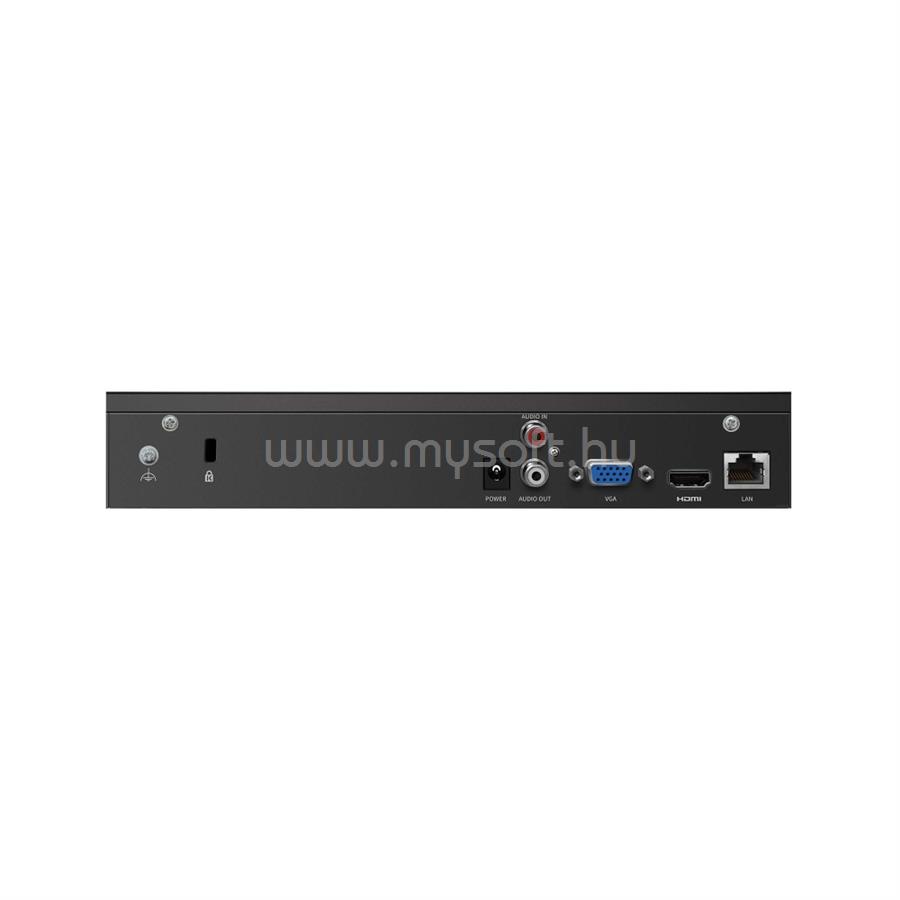

• EXTERNAL INTERFACE

• Network Interface
• 1, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• USB Interface
• 2× USB 2.0
• Audio Interface
• 1, Audio In; 1, Audio Out
• Alarm In/Out
• N/A
• Serial Interface
• N/A
• Power
• 1× DC Jack
• Reset Button
• 1
• Speaker
• N/A
• eSATA
• N/A
• HDMI
• 1
• VGA
• 1

• HARD DISK

• SATA
• 1 SATA Interface
• Capacity
• Up to 10 TB Capacity for Each HDD*

• ALARM

• General Alarm
• Motion Detection
• Video Tampering
• Line-Crossing Detection
• Intrusion Detection
• Region Entering Detection
• Region Exiting Detection
• Object Abandoned/Removal Detection
• Vehicle Detection
• Human Detection
• Smart Frame
• Anomaly Alarm
• Video Loss
• Offline and IP Conflict
• Disk Exception
• Login Exception
• Alarm Linkage
• Recording
• White Light Alarm
• Buzzer
• Log
• Audible Alarm

• ÁLTALÁNOS

• Storage Temperature
• -40-70 °C
• Storage Humidity
• 10%~90% RH Non-Condensing
• Csomagolás tartalma
• VIGI Network Video Recorder
• Power Adapter
• HDD Screws
• Mouse
• Rubber Feet
• Quick Installation Guide
• Working Temperature
• NVR: -10-55 °C
• Power Adapter: 0-40 °C
• Working Humidity
• 10%~90% RH Non-Condensing
• Méretek (Sz x Mé x Ma)
• 246.2 × 148.2 × 45 mm
• Külső tápellátás
• DC 12V/1.5A
• Net Weight
• 0.59 kg
• Gross Weight
• 0.95 kg
• Power Consumption
• 4.25 W (Without Disk)
• Certifications
• CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
