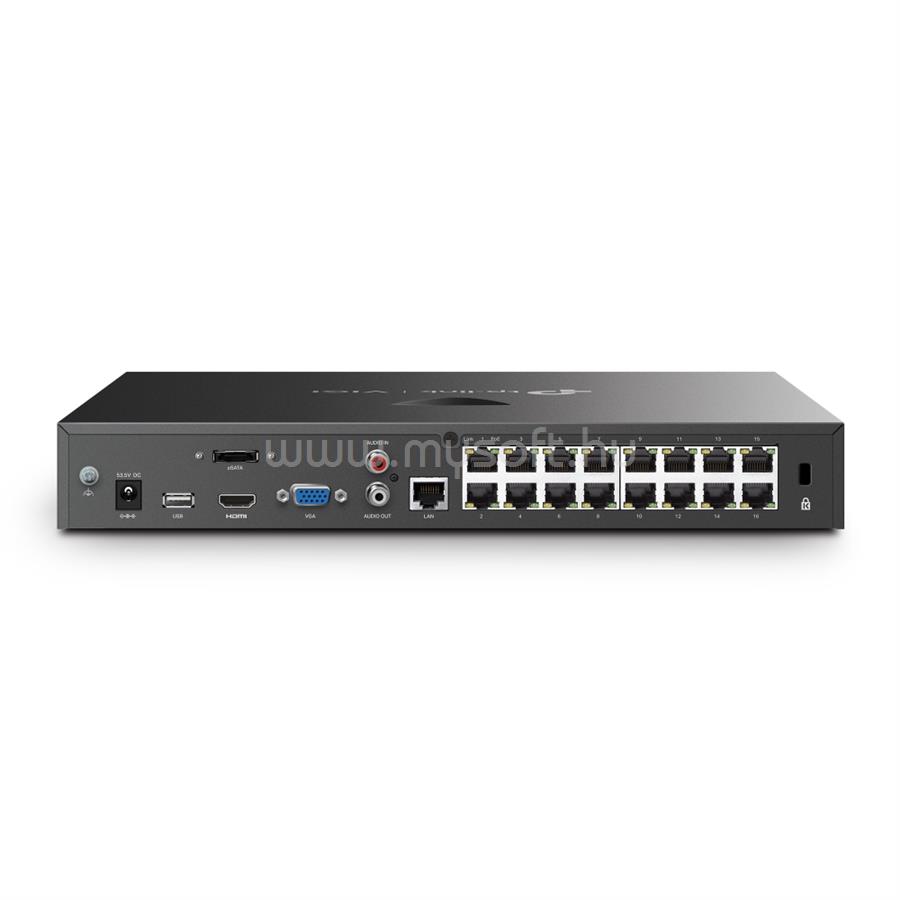

TP-LINK VIGI NVR2016H-16P VIDEO RECORDER 16 CSATORNÁS POE+ (2X SATA)

• VIDEO AND AUDIO

• IP Video Input
• 16-Channel
• Incoming Bandwidth
• 80 Mbps
• Outgoing Bandwidth
• 60 Mbps
• HDMI Output Resolution
• 1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• VGA Output Resolution
• 1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz
• Video Output Mode
• HDMI/VGA Simultaneous Output
• Multi-View Display
• 1/4/6/8/9/16

• DECODING

• Audio Compression
• G.711A/G.711U/G.726
• Video Compression
• H.265+/H.265/ H.264+/H.264
• Record Resolution
• 8MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/
• 2CIF/CIF/QCIF
• Synchronous Playback
• 16-Channel
• Capability
• 25fps:
• 2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MP
• 30fps:
• 4-ch @ 3MP, 2-ch @ 5MP

• RECORD MANAGEMENT

• Record Mode
• Manual Recording, Scheduling Recording, Motion Detection Recording
• Playback Mode
• Instant Playback, Regular Playback, Tag Playback, Event Playback
• Backup Mode
• Regular Backup, Video Clip Backup
• Playback Function
• Play, Pause, Stop, Fast Forward, Fast Backward, Play By Frame, Full
• Screen, Video Clip, Export Clip, Digital Zoom, Lock Recording, Audio On/Off

• HÁLÓZAT

• Szabvány
• UPnP (Plug and Play), NTP (Network Timing)
• Mobile Phone Access
• Android, iOS
• Web Browser
• Chrome (57+), Firefox (52+), Edge (91+)
• Interoperability
• ONVIF, CGI

• EXTERNAL INTERFACE

• Network Interface
• 1, RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
• USB Interface
• 1 Front USB 2.0 Port, 1 Rear USB 2.0 Port
• Audio Interface
• 1, Audio In; 1, Audio Out
• Alarm In/Out
• N/A
• Serial Interface
• N/A
• Power
• 1× DC Jack
• Reset Button
• 1
• Speaker
• N/A
• eSATA
• 1
• HDMI
• 1
• VGA
• 1

• HARD DISK

• SATA
• 2 SATA Interfaces
• Capacity
• Up to 10 TB Capacity for Each HDD

• POE

• Standard
• 802.3at/af Compliant
• Interface
• 1- 16, RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface
• PoE Budget
• 90 W Available for All PoE+ Ports, 30 W Max per Port

• ALARM

• General Alarm
• Motion Detection, Video Tampering, Line-Crossing Detection, Intrusion Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned/Removal Detection, Vehicle Detection, Human Detection, Smart Frame
• Anomaly Alarm
• Video Loss, Offline and IP Conflict, Disk Exception, Login Exception, Fan Exception
• Alarm Linkage
• Recording, White Light Alarm, Buzzer, Log, Audible Alarm

• ÁLTALÁNOS

• Storage Temperature
• -40-70 °C
• Storage Humidity
• 10%~90% RH Non-Condensing
• Csomagolás tartalma
• VIGI Network Video Recorder
• Power Adapter
• Power Cables
• HDD Power Cables
• HDD Data Cables
• Mounting Accessories
• Mouse
• Quick Installation Guide
• Working Temperature
• NVR: -10-55 °C
• Power Adapter: 0-40 °C
• Working Humidity
• 10%~90% RH Non-Condensing
• Méretek (Sz x Mé x Ma)
• 330 × 285 × 45 mm
• Net Weight
• 1.9 Kg
• Gross Weight
• 3.2 Kg
• Power Supply
• 53.5V DC/2.43A
• Power Consumption
• 6.2 W (Without Disk)
• 40 W (With Disk)
• Certifications
• CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC, HDMI

Garancia fogyasztók részére

• 2 év kötelező jótállás + 1 év gyártó által biztosított szervizgarancia

Garancia nem fogyasztók részére

• 3 év gyártó által biztosított szervizgarancia
