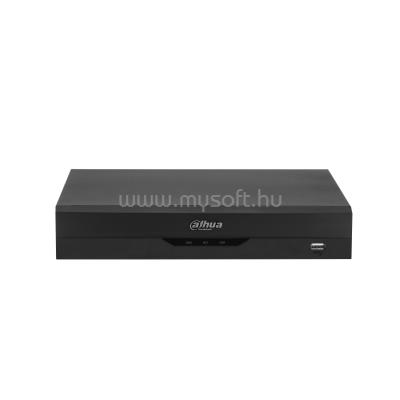

DAHUA XVR RÖGZÍTŐ - XVR5108HS-I3 (8 PORT, 5MP/30FPS, H265+, 1X SATA, HDMI+VGA; 1X RJ45; AI)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web; Local GUI

• Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels)
• Advanced Model : 1 channel, 10 IVS for each channel
• General Model : 2 channels, 10 IVS for each channel

• Face Detection

• Face Attributes
• Gender; age group; glasses; expressions; face mask; beard
• Face Detection Performance of AI by Recorder (Number of Channels)
• 1 channel, (up to 8 face images/s)

• Face Recognition

• Face Database Capacity
• Up to 10 face databases and 10,000 images.
• Face Recognition Performance of AI by Recorder (Number of Channels)
• 1 channel

• SMD Plus

• SMD Plus by Recorder
• 8-channel: Secondary filtering for human and motor vehicle , reducing false alarms caused by leaves, rain and lighting condition change

• Audio and Video

• Analog Camera Input
• 8 channels, BNC: adaptive access by default; HDCVI, AHD, TVI and CVBS access can be configured.
• Camera Input
• 1. CVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@50/60 fps, 720p@25/30 fps.
• 2. TVI: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
• 3. AHD: 5 MP, 4 MP, 1080p@25/30 fps, 720p@25/30 fps.
• 4. CVBS: PAL/NTSC
• IP Camera Input
• Up to 12 channels of IPC access
• 4 IP channels by default + 8 channels (analog channels are converted to IP channels)
• incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps
• *After IP channels are added beyond the existing channels, the AI Function (IVS, SMD, FACE) will be disabled.
• Encoding Capacity
• Main stream: All channel 5M-N (1 fps-10 fps);
• 4M-N/1080p (1 fps-15 fps); 1080N/720p/960H/
• D1/CIF (1 fps-25/30 fps)
• Sub stream: D1/CIF (1 fps-15 fps)
• Dual-stream
• Yes
• Video Bit Rate
• 32 kbps-6144 kbps
• Audio Sampling
• 8 kHz, 16 bit
• Audio Bit Rate
• 64 kbps
• Video Output
• 1 HDMI, 1 VGA
• HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• Multi-screen Display
• When IP extension mode not enabled: 1/4/8/9
• When IP extension mode enabled: 1/4/8/9/16
• Third-party Camera Access
• ONVIF; Panasonic; Sony; Axis; Arecont; Pelco; Canon; Samsung

• Compression Standard

• Video Compression
• AI Coding; H.265+; H.265; H.264+; H.264
• Audio Compression
• G.711a; G.711u; PCM

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; P2P
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 21.06; CGI Conformant
• Browser
• Chrome
• IE9 or later
• Firefox
• Network Mode
• Single-address mode

• Recording Playback

• Record Mode
• General, motion detection; intelligent; alarm; POS
• Recording Playback
• 1/4
• Backup Method
• USB device and network
• Playback Mode
• Instant playback, general playback, event playback, tag playback, smart playback (face and motion detection)

• Alarm

• General Alarm
• Motion detection, video loss, tampering
• Anomaly Alarm
• No disk, disk error, low space, offline, ip conflict, MAC conflict
• Intelligent Alarm
• Face detection, face recognition, perimeter protection
• Alarm Linkage
• Record, snapshot (panoramic), IPC external alarm output, access controller, voice prompt, buzzer, log, preset, email

• Ports

• Audio Input
• 1-channel RCA
• 8-channel BNC (Coaxial Audio)
• Audio Output
• 1-channel RCA
• Two-way Talk
• Yes (share the same audio input with the first channel)
• HDD Interface
• 1 SATA port, up to 16 TB. The maximum HDD capacity varies with environment temperature.
• RS-485
• 1 port, for PTZ control
• USB
• 2 USB ports (USB 2.0)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 2 A
• Power Consumption
• <7 W
• Net Weight
• 1.1 kg (2.43 lb)
• Gross Weight
• 1.5 kg (3.31 lb)
• Product Dimensions
• 260.0 mm × 237.9 mm × 47.6 mm (10.24'' × 9.37'' × 1.87'') (W × D × H)
• Packaging Dimensions
• 333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)
• Operating Temperature
• -10 °C to +55 °C (+14 °F to +131 °F)
• Operating Humidity
• 0%-90% (RH)
• Installation
• Desktop
