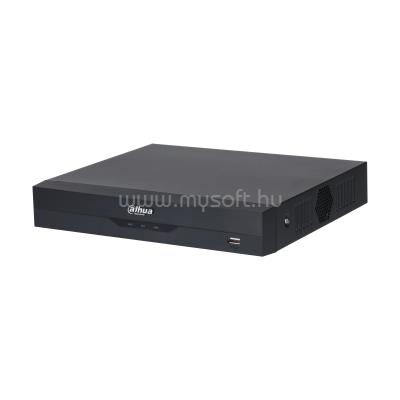

DAHUA XVR5116HS-I3 XVR RÖGZÍTŐ (16 PORT, 5MP/10FPS, 1080P/30FPS, H265+, 1X SATA, HDMI, AUDIO, + 8 IP KAMERA TÁMOGATÁS)

• System

• Main Processor
• Industrial-grade processor
• Operating System
• Embedded Linux
• Operating Interface
• Web; Local GUI

• Perimeter Protection

• Perimeter Performance AI by Recorder (Number of Channels)
• Advanced Mode: 2 channels, 10 IVS rules for each channel
• General Mode: 4 channels, 10 IVS rules for each channel

• Face Detection

• Face Attributes
• 6 attributes
• Face Detection Performance of AI by Recorder (Number of Channels)
• 2 channels(up to 12 face images/s each channel)

• Face Recognition

• Face Database Capacity
• Up to 10 face databases with 10,000 images.
• Face Recognition Performance of AI by Recorder (Number of Channels)
• 2 channels

• SMD Plus

• SMD Plus by Recorder
• 16 channels:
• Secondary filtering for human and motor vehicle, reducing false alarms caused by leaves, rain and lighting condition change
• SMD Plus by Camera
• 24 channels

• AI Video Quality Analytics

• AI Video Quality Analytics by Recorder
• 16 channels: Supports detecting brightness levels, color cast, defocus, overexposure, contrast levels, black and white

• Scene Changing

• Scene Changing by Recorder
• 1 channel

• Irregular Black Block Masking

• Irregular Black Block Masking by Recorder
• 1 channel

• Audio and Video

• Analog Camera Input
• 16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
• Camera Input
• 1. CVI: 5 MP@25 fps; 5 MP@20 fps; 5 MP@10/12.5 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@50/60 fps; 720p@25/30fps.
• 2. TVI: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• 3. AHD: 5 MP@20 fps; 4 MP@25/30 fps; 1080p@25/30 fps; 720p@25/30 fps.
• IP Camera Input
• Up to 24 channels of IPC access
• 8 IP channels by default + 16 channels (analog channels are converted to IP channels)
• incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps
• *After IP extension is enabled, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection cannot be used.
• Encoding Capacity
• Main stream:
• 5 MP Mode: 4-ch 5 MP@(1 fps-6 fps); others 5M-N@(1 fps-12 fps)
• 5M-N Mode: 5M-N@(1 fps -12 fps); 4M-N/1080p@(1 fps-15 fps); 1080N/720p/960H/D1/CIF@(1 fps-25/30 fps)
• Sub stream: D1/CIF@(1 fps-15 fps)
• Dual-stream
• Yes
• Video Bit Rate
• 32 kbps-6144 kbps
• Audio Sampling
• 8 kHz, 16 bit
• Audio Bit Rate
• 64 kbps
• Video Output
• 1 HDMI, 1 VGA
• VGA: 1920 × 1080, 1280 × 1024, 1280 × 720
• HDMI: 3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720
• It changes to 1920 × 1080, 1280 × 1024, 1280 × 720 when Face or IVS&SMD is selected in AI Mode.
• Multi-screen Display
• When IP extension mode not enabled: 1/4/8/9/16
• When IP extension mode enabled: 1/4/8/9/16/25
• Third-party Camera Access
• Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF

• Compression Standard

• Video Compression
• AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
• Audio Compression
• G.711a; G.711u; PCM

• Network

• Network Protocol
• HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
• Mobile Phone Access
• iOS; Android
• Interoperability
• ONVIF 23.12 (Profile T; Profile S; Profile G); CGI; SDK
• Browser
• Chrome; IE; Safari; Edge; Firefox

• Recording Playback

• Record Mode
• General; alarm; motion detection; intelligent; POS
• Recording Playback
• 1/4/9/16
• It changes to 1/4/9 split when Face or IVS&SMD is selected in AI Mode.
• Backup Method
• USB device and network
• Playback Mode
• Instant playback; general playback; event playback; tag playback; smart playback

• Alarm

• General Alarm
• Motion detection; HDCVI alarm; camera external alarm; network alarm; PIR alarm
• Anomaly Alarm
• Error (no disk, disk error, low space, low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
• Intelligent Alarm
• Face detection; face recognition; perimeter protection; SMD Plus
• Alarm Linkage
• Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

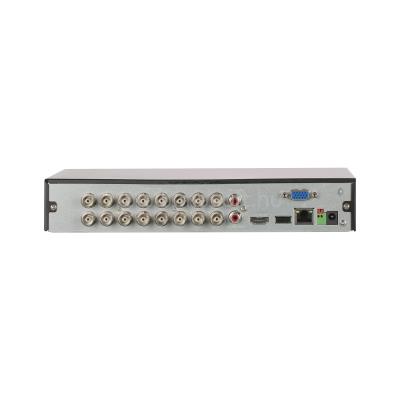

• Ports

• Audio Input
• 1-channel RCA
• 16-channel BNC (Coaxial Audio)
• Audio Output
• 1-channel RCA
• Two-way Talk
• Yes (share the same audio input with the first channel)
• Disk Interface
• 1 SATA port, up to 16 TB. This limit varies depending on the environment temperature.
• RS-485
• 1
• USB
• 2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
• HDMI
• 1
• VGA
• 1
• Network Port
• 1 (10/100/1000 Mbps Ethernet port, RJ-45)

• General

• Power Supply
• 12 VDC, 2 A
• Power Consumption
• <12 W(without HDD)
• Net Weight
• 1.17 kg (2.58 lb)
• Gross Weight
• 1.57 kg (3.46 lb)
• Product Dimensions
• 260.0 mm × 237.8 mm × 47.6 mm (10.24" × 9.36" × 1.87") (W × D × H)
• Packaging Dimensions
• 333.0 mm × 89.0 mm × 315.0 mm (13.11" × 3.50" × 12.40") (W × D × H)
• Operating Temperature
• -10 °C to +55 °C (+14 °F to +131 °F)
• Storage Temperature
• -20 °C to +60 °C (-4 °F to +140 °F)
• Operating Humidity
• 10%-90% (RH), non-condensing
• Installation
• Desktop
• Certifications
• CE: CE-LVD: EN 60950-1/IEC 60950-1
• CE-EMC: EN 61000-3-2, EN 61000-3-3, EN 55032, EN 50130, EN 55024
• FCC: Part 15 Subpart B
